VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

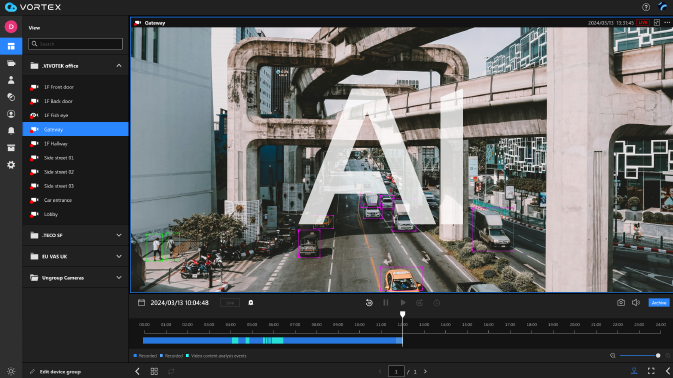

VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

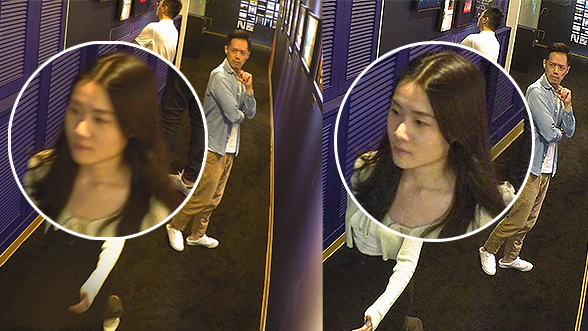

RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.

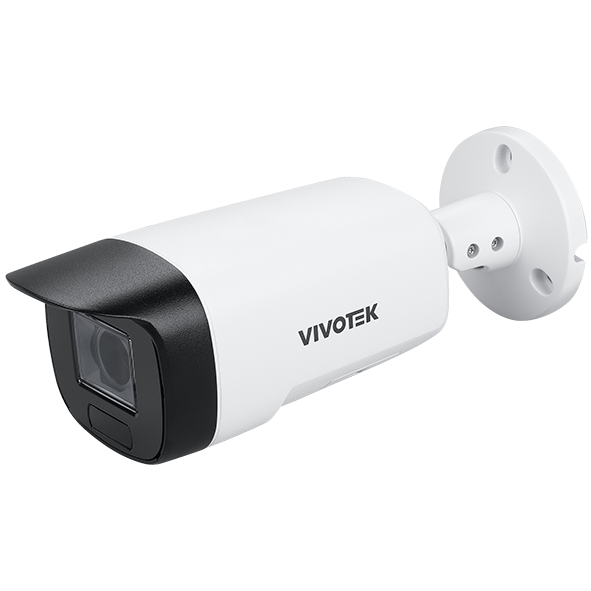

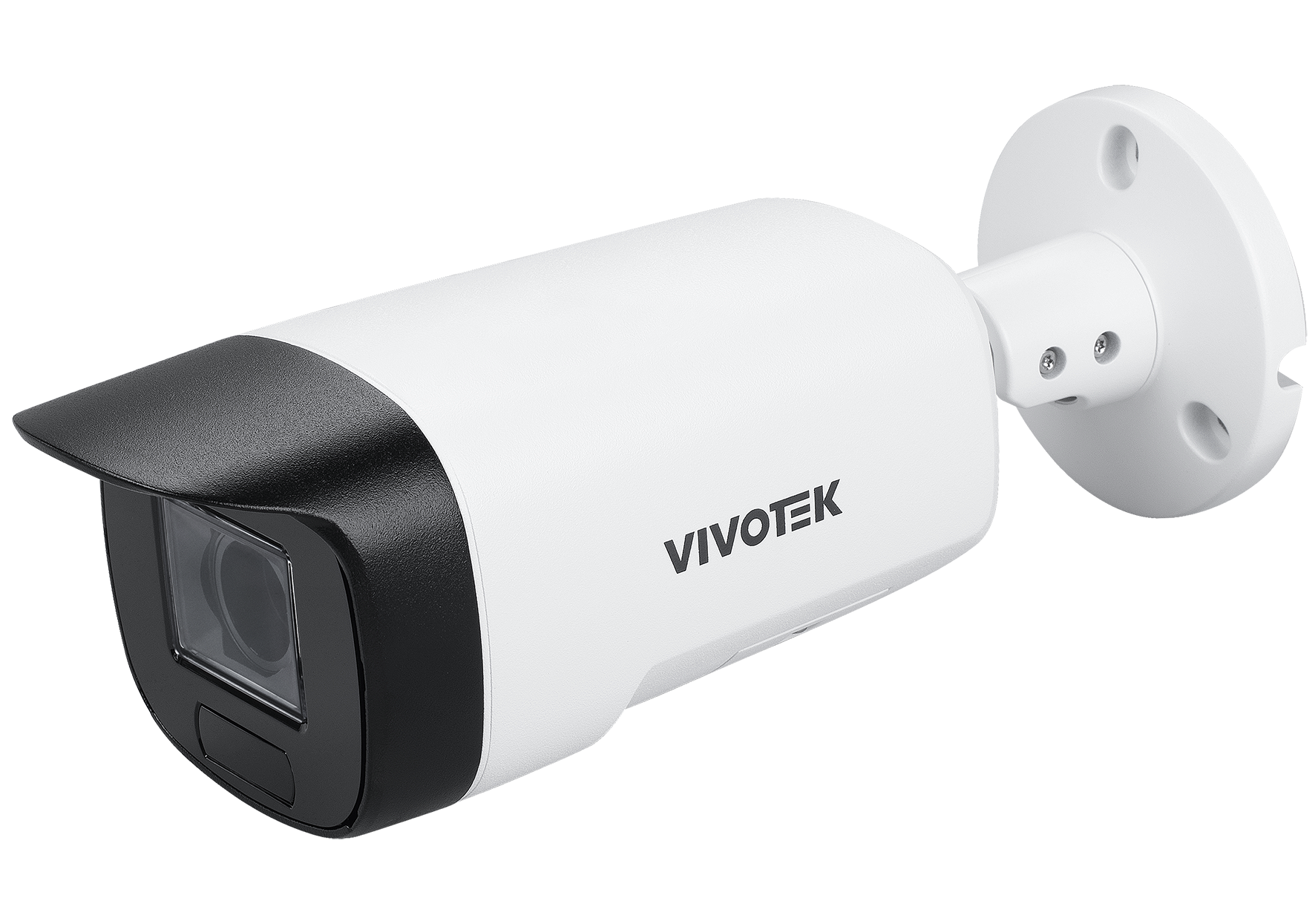

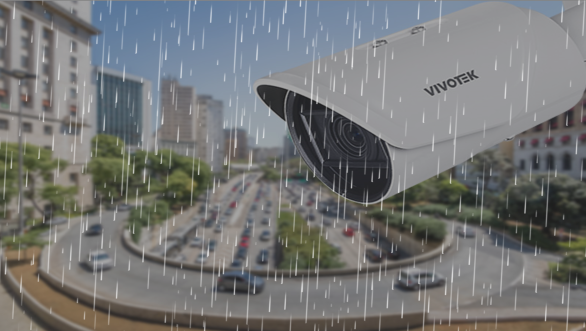

Premium Dome & Bullet AI Cameras support IK10 impact
resistance and IP67 weatherproofing, ensuring durability in
harsh conditions.
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
Camera Features
Image Sensor
1/1.8" Progressive CMOS
Resolution
SD: 1280 x 720
HD: 3840 x 2160
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 4.3~9.8mm
Aperture
F1.6 ~ F2.6
Iris
P-iris
Field of View
110.4° ~ 45.1° (Horizontal)
57.9° ~ 25.4° (Vertical)
133.9° ~ 51.8°(Diagonal)
Camera Movement
Tilt: 80° Rotate:350°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators, effective up to
40 meters with Smart IR, IR LED*4
WDR Technology
WDR Pro
Minimum Illumination
0.02 lux @ F1.6 (Color)
<0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 512GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 3840 x 2160 (8MP) @15fps 3Mbps upload
SD Video 1280 x 720@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way Audio
(License required to enable speaker talk-down feature)
Interface
Built-in microphone
External microphone Input
External line output
Effective Range
5 Meters
Power and Network
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 12.4W/ 9.6W (IR on/off)
Connectivity
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio line input
Audio line output
Digital input: 1
Digital output: 1
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-35°C ~ 60°C (-31°F ~ 140°F) (IR off)
-35°C ~ 50°C (-31°F ~ 122°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC
CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS
CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)IC (ICES-003 Issue 7, Class A)
Safety
UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471),UKCA (BS EN IEC 62368-1)
Environment
IK10 (IEC 62262), IP66, IP67 (IEC 60529),BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Warranty
Up to 10 years (Depends on license type)
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
1.04 kg
Dimensions
ø 92 x 258.5 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application
Intrusion detection, Line crossing detection, Loitering detection,Unattended object detection, Missing object detection
AI Hub with xPro License
Attribute Search, Scene Search, Re-Search, Profile Search, LPR Search
Application available with license
--
