VORTEX 將監控擴展統整在一個平台上，提供與各種攝影機管理的無縫一致性。自動化任務以提高生產力和效率。享受流暢的遠端管理，即時推送通知到您的手機、電子郵件、警報和 Webhooks，簡化 IT 維護。

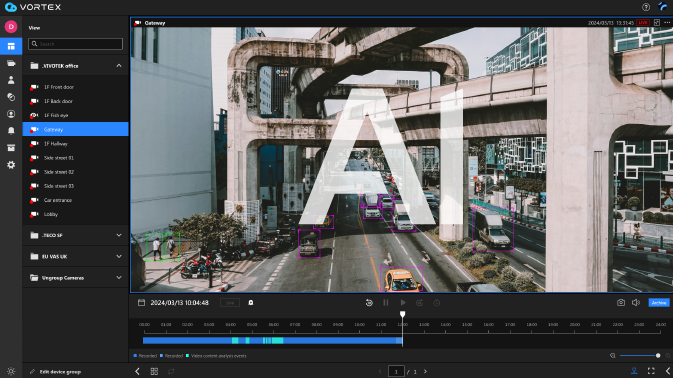

VORTEX 通過 AI 分析提供實時警報和通知，如入侵、越線和徘徊檢測。其機器學習能力隨時間提升準確性，確保有效的監控效果和安心感。
RealSight Engine 解決因快速移動所產生的影像動態模糊問題，能準確捕捉人物細節，無需調整快門速度即可自動提升畫面清晰度。

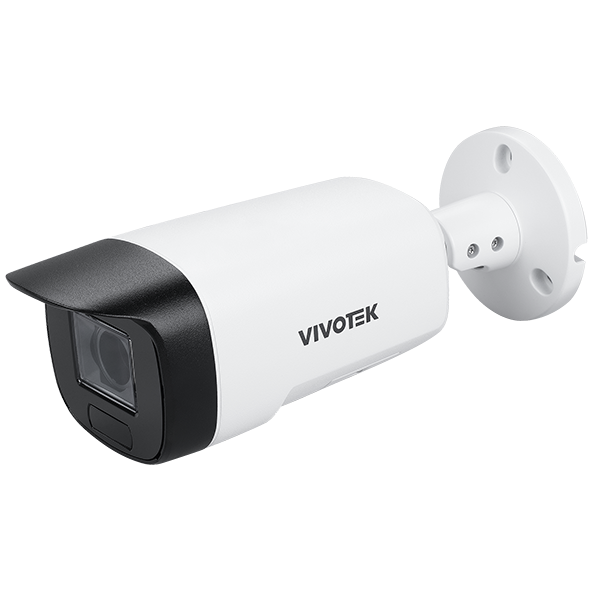

高階子彈型 AI 攝影機具備 IK10 防破壞與 IP67 防水防塵等級，確保在惡劣天候與高風險環境中依然穩定耐用。
VORTEX 攝影機輕鬆連接雲端，無需額外伺服器即可擴展。享受長達十年的保固和持續的授權訂閱，顯著節省每台攝影機的成本。
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.8 ~ 12 mm
Aperture
F1.6 ~ F3.3
Iris
P-iris
Field of View
95.4° ~ 28.7° (Horizontal)
68.8° ~ 21.5° (Vertical)
129.6° ~ 35.9°(Diagonal)
Camera Movement
Tilt: 80° Rotate:350°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
WDR Technology
WDR Pro
Minimum Illumination
0.04 lux @ F1.6 (Color)
0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way Audio
(License required to enable speaker talk-down feature)
Interface
Built-in microphone
External microphone Input
External line output
Effective Range
5 Meters
Power and Network
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 12.4W/ 9.6W (IR on/off)
Connectivity
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio line input
Audio line output
Digital input: 1
Digital output: 1
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-35°C ~ 60°C (-31°F ~ 140°F) (IR off)
-35°C ~ 50°C (-31°F ~ 122°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC
CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)IC (ICES-003 Issue 7, Class A)
Safety
UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471),UKCA (BS EN IEC 62368-1)
Environment
IK10 (IEC 62262), IP66, IP67 (IEC 60529),BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Warranty
Up to 10 years (Depends on license type)
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
1.04 kg
Dimensions
ø 92 x 258.5 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application
Intrusion detection, Line crossing detection, Loitering detection,Unattended object detection, Missing object detection
AI Hub with xPro License
Attribute Search, Scene Search, Re-Search, Profile Search, LPR Search
Application available with license
-
