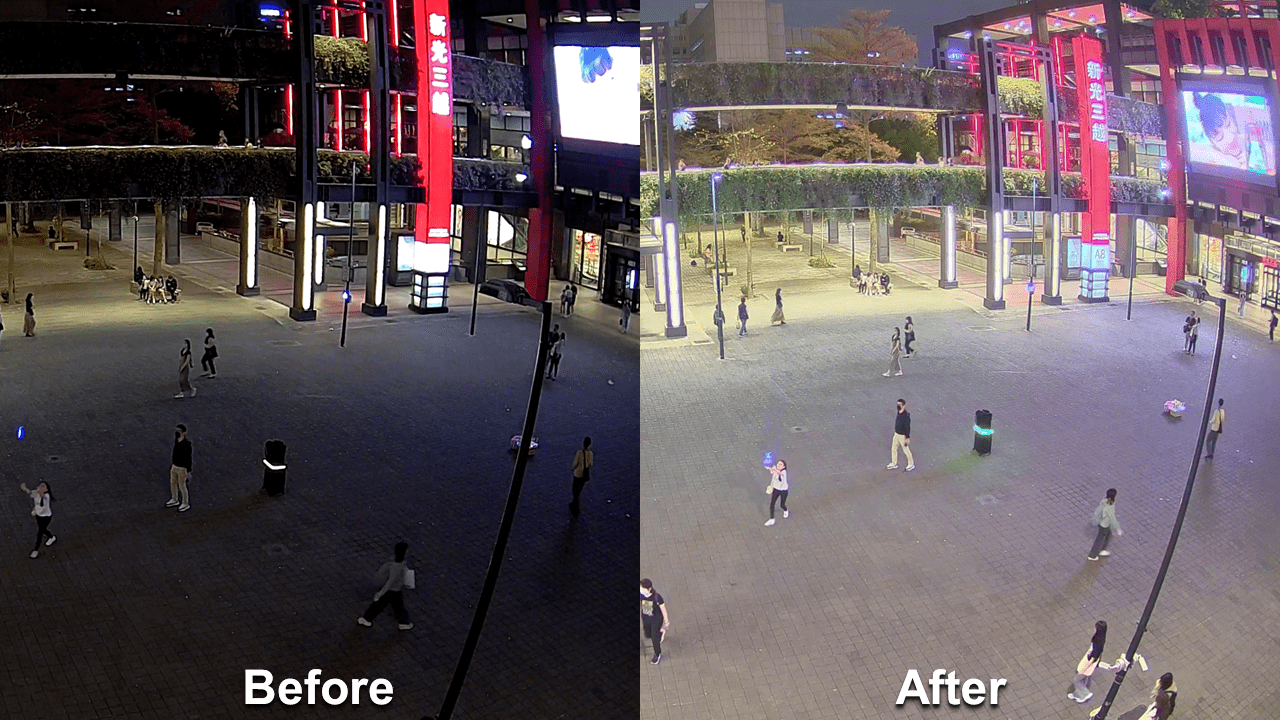

The camera delivers exceptional clarity and precision to ensure superior visibility from bright daylight to low-light environments, assured that every detail is captured with remarkable clarity in all lighting conditions.

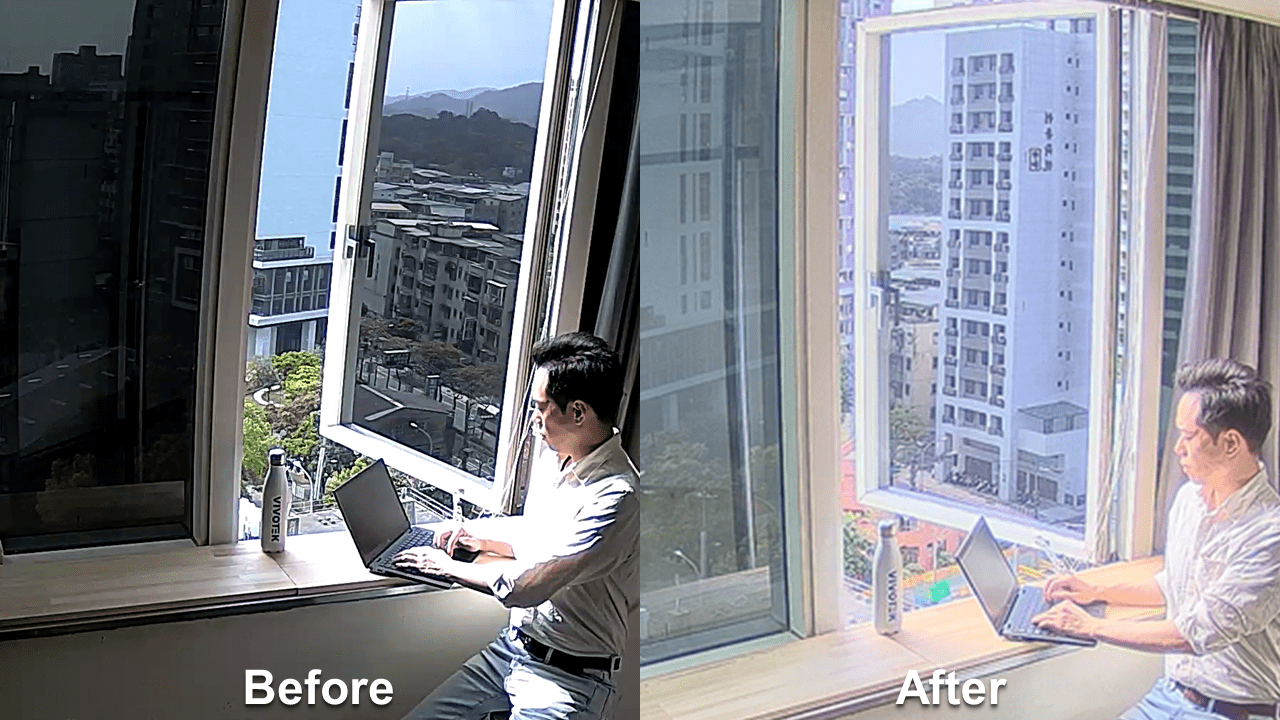

The camera ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance performance.

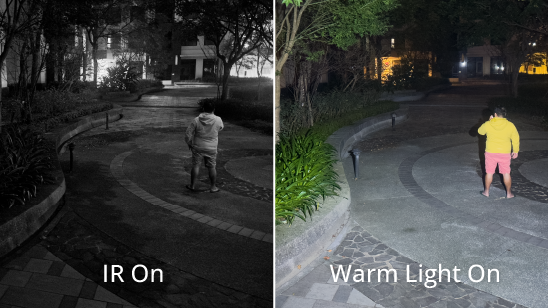

Regardless of lighting conditions, camera would automatically activates its illuminator when it detects people and cars passing by. This not only reproduces clear color images but also provides proactive protection for the area.

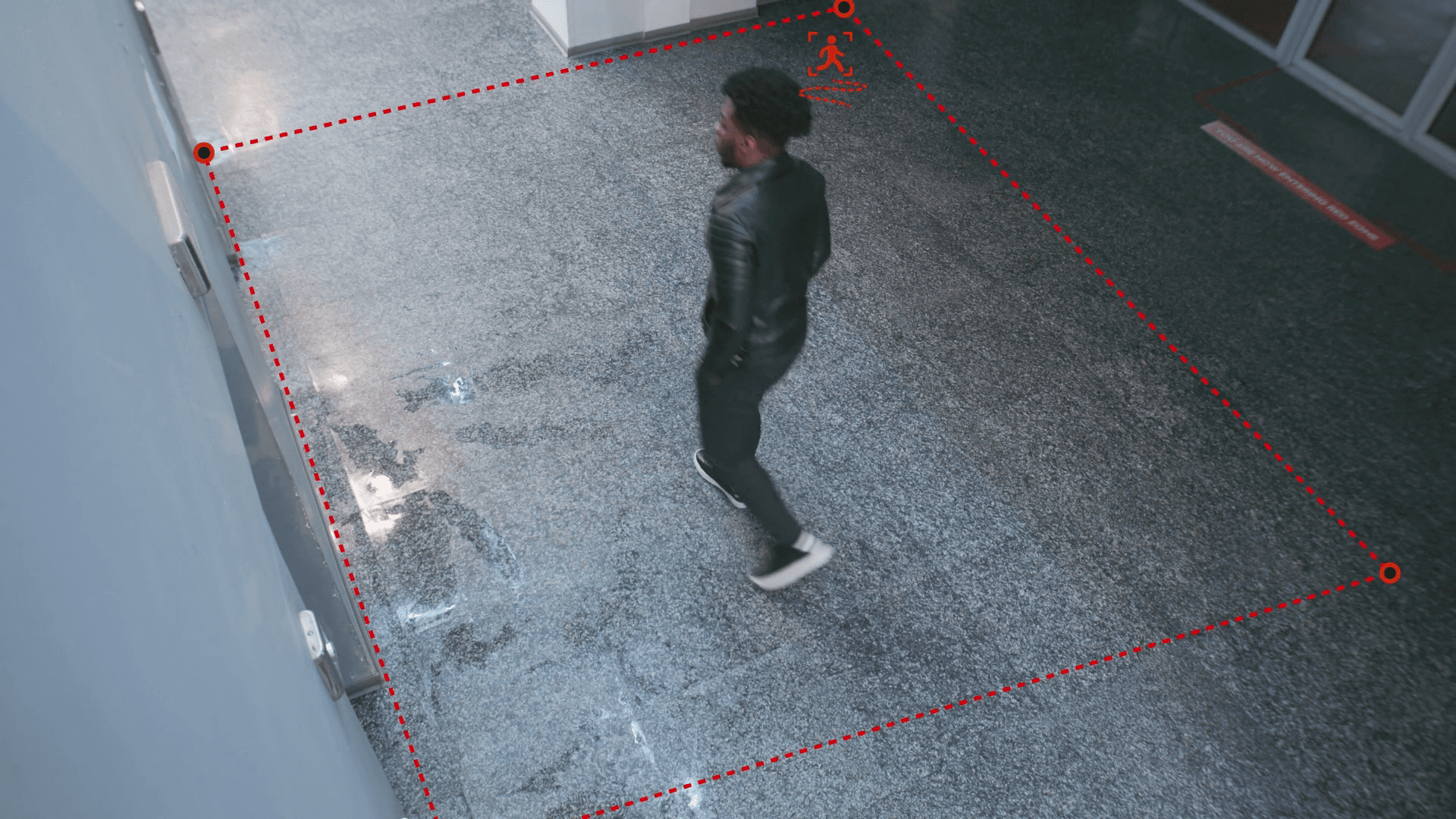

The camera equipped with a class-leading AI processor, effortlessly manages over 25 detection objects in its field of view (FOV). It accurately identifies objects with their attributes and is not influenced by obstacles or lighting conditions.
VORTEX AI is designed to improve monitoring efficiency and reduce users' workloads compared to conventional cameras with motion detection. It offers precise detection of unusual events, providing detailed video analytics and quick searches. This system reduces false alarms and notifies managers promptly, enabling them to implement effective management strategies.
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F2.0
Iris
Fixed iris
Field of View
103.4° (Horizontal)
75.3° (Vertical)
135.2° (Diagonal)
Camera Movement
Pan: 350°
Tilt: 70°
Rotate: ±175°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in Warm Light & Infrared (Hybrid) illuminators, effective up to 30 meters with Smart IR/ warm light
WDR Technology
WDR Pro
Minimum Illumination
0.018 lux @ F1.2 (Color), 30IRE
<0.01 lux @ F1.2 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
One-way Audio
Interface
Built-in microphone
Effective Range
5 meters
Power and Network
Power Input
Max: 20 W / 13.5W (IR on/ IR off)
Power Consumption
Max: 10.7W / 7W (IR on/off)
Normal: 5.5W
Connectivity
RJ-45 cable connector for 10/100 Mbps PoE network connection
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-10°C ~ 50°C (-14°F ~ 122°F)
Working Temperature:
-30°C ~ 50°C (-22°F ~ 122°F) (IR off)
-30°C ~ 45°C (-22°F ~ 113°F) (IR on)
Humidity
90% RH (non-condensing)
Certifications
EMC:
CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety:
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
Environment:
IK10 (IEC 62262), IP66 (IEC 60529)
IA:
BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Warranty
10 years
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
730 g
Dimensions
ø 120 x 95 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
People Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics
Unattended object detection, Missing object detection
