CC830-HV New

  • 5MP

    Image Resolution

  • Fixed focal

    Lens Type

  • Indoor

    Environment Compatibility

  • Premium Series
  • 5MP Panoramic
  • 1.47 mm
  • WDR Pro
  • IP66/IK10
  • FCC/CE/UL/NDAA/TAA
Request Demo

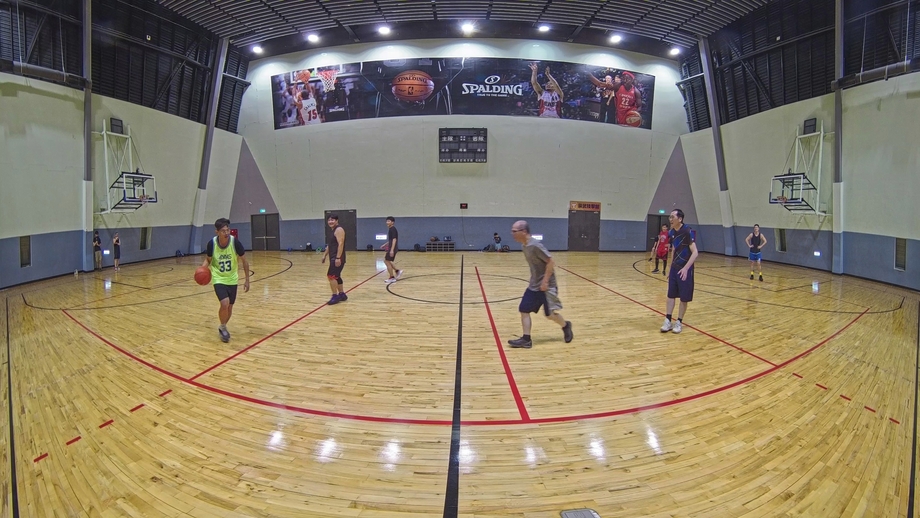

180-degree View with Clear Evidence

Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180-degree field of view. Seamlessly capture every detail in stunning high-resolution with smooth, crystal-clear video at 30fps for effortless identification and review. This empowers you to see everything, from every angle.

180-degree View with Clear Evidence

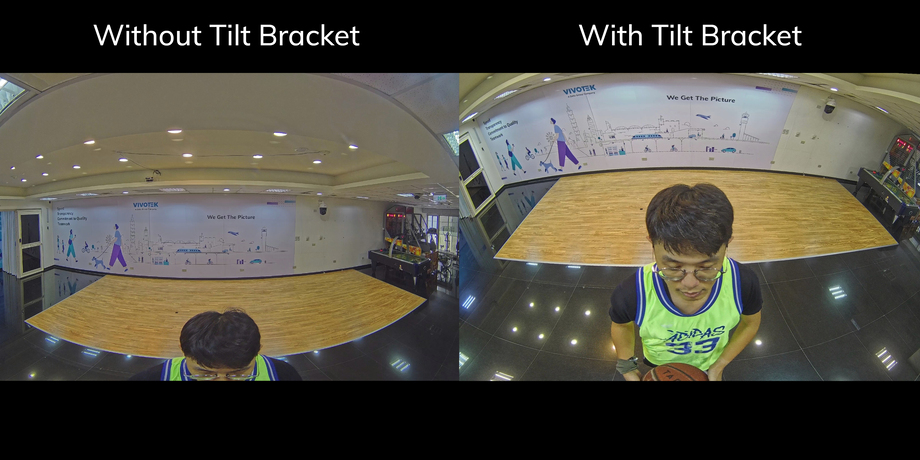

Enhanced Coverage with included Tilt Bracket

The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15~20 degrees, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your security coverage.

Enhanced Coverage with included Tilt Bracket

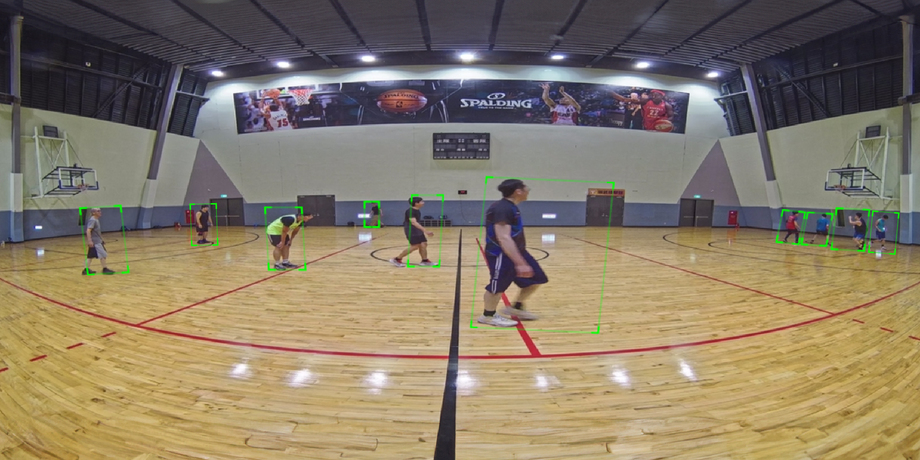

Uncover Video Insights with Vision Object Analytics

The compact panoramic camera, equipped with VIVOTEK AI technology, empowers you to enhance investigation efficiency by identifying people and vehicles based on unique attributes like color, gender, and type. Streamline your search process and minimize duplicate entries with precise object tracking.

Uncover Video Insights with Vision Object Analytics

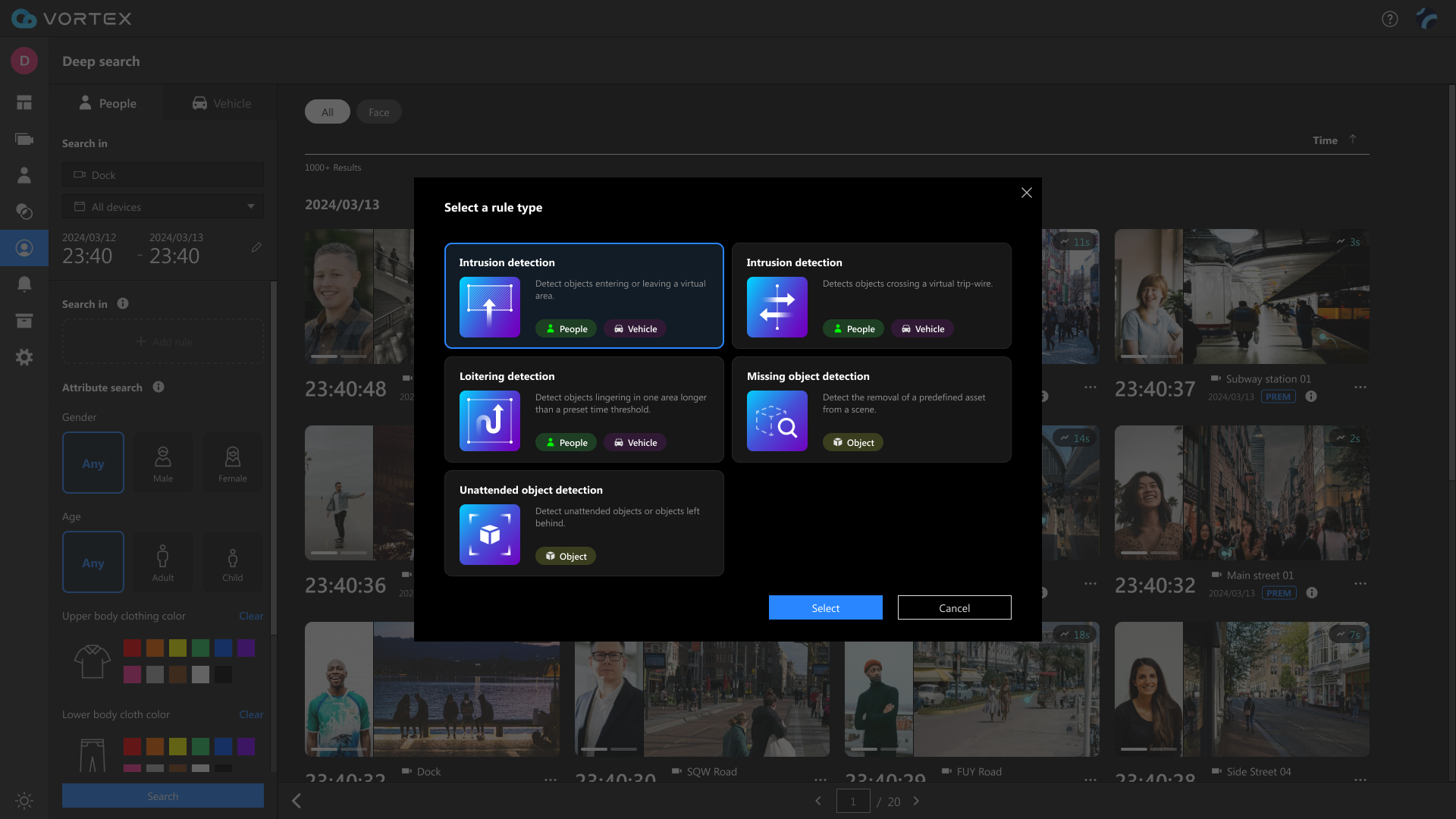

Streamline Your Surveillance with Deep Search

Quickly review camera footage with the Scene Search feature from the Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.

Streamline Your Surveillance with Deep Search

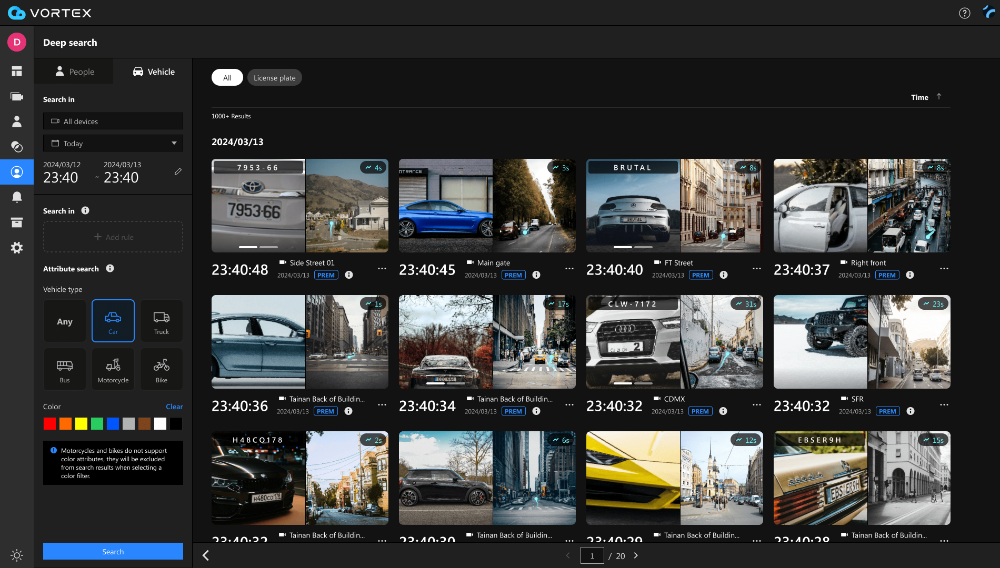

Advanced Deep Search with Attributes

VORTEX's Deep Search leverages AI for efficient and enhanced search capabilities. It includes Attribute Search, Scene Search, and Re-Search. Using metadata-defined attributes and rules eliminates the need to scroll through footage, enabling faster, smarter, and easier video evidence searches. Quickly find the target person or vehicle by setting criteria such as gender or license plate number.

Advanced Deep Search with Attributes
Peace of Mind with 10-Year Warranty

VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.

Peace of Mind with 10-Year Warranty
Technical Specifications
Camera Features

Image Sensor

1/2.8" Progressive CMOS

Resolution

HD: 2560 x 1920
SD: 1280 x 960

Lens Type

Fixed-focal

Focal Length

f = 1.47 mm

Aperture

F2.7

Iris

Fixed iris

Field of View

180° (Horizontal)
120° (Vertical)
180°(Diagonal)

Camera Movement

Tilt: ±20°

Shutter Speed

1/5 sec. to 1/32,000 sec.

Day/Night

Yes

IR Cut Filter

Yes

IR Range

-

WDR Technology

WDR Pro

Minimum Illumination

0.08 lux @ F2.7 (Color)
0.005lux @ F2.7 (B/W)

Onboard Storage

MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)

Standard Video Settings

Frame Rate

15FPS

Video Streaming Settings

HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload

Standard Audio Settings

Audio

One-way Audio

Interface

Built-in microphone

Effective Range

5 meters

Power and Network

Power Input

IEEE 802.3af PoE Class 0

Power Consumption

MAX. 9.12W

Connectivity

RJ-45 cable connector for 10/100 Mbps Network/PoE connection

Protocols

WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4,NTP,RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP

Users

Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)

Security

Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

General

Operating Temperature

Starting Temperature:
-10°C ~ 55°C (14°F~ 131°F)
Working Temperature:
-30°C ~ 55°C (-22°F~131°F)

Humidity

98% RH (non-condensing)

Certifications

EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A);

Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1); Environment: IK10 (IEC 62262), IP66(IEC 60529)

Warranty

10 years

Included Accessories

Quick installation guide, mounting bracket, tilt bracket, screw pack

Mechanical

Weight

338 g

Dimensions

115 x 65 x 59 mm

Body

Metal

AI Analytics

Audio Detection

Yes

Tampering Detection

Yes

People Analytics

Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search

Vehicle Analytics

Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search

Object Analytics

Unattended object detection, Missing object detection
