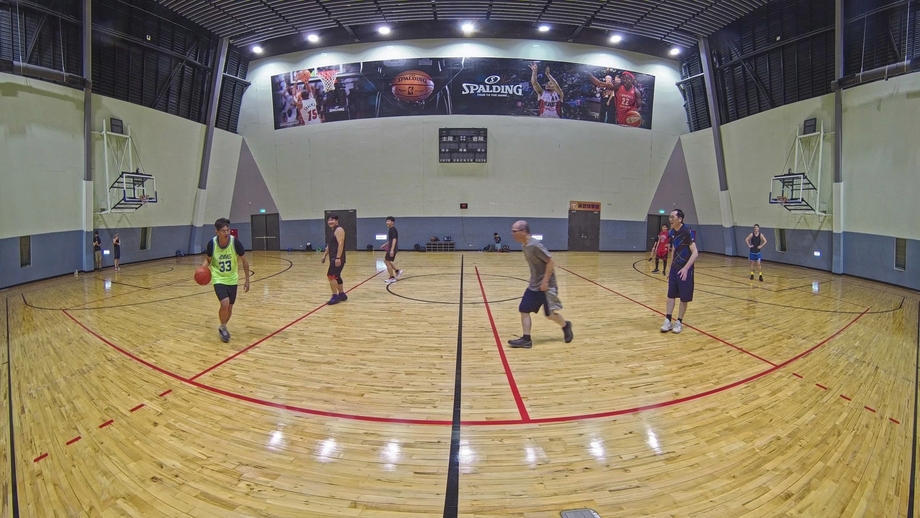

180 度的寬廣視野能有效消除盲點，全面掌握周遭環境。流暢清晰，令人驚豔的 30 fps 高解析度影像，完美捕捉每個細節，讓您能輕鬆辨識及檢閱所有影像。這讓您能從各個角度清晰掌握全貌，確保無所遺漏。

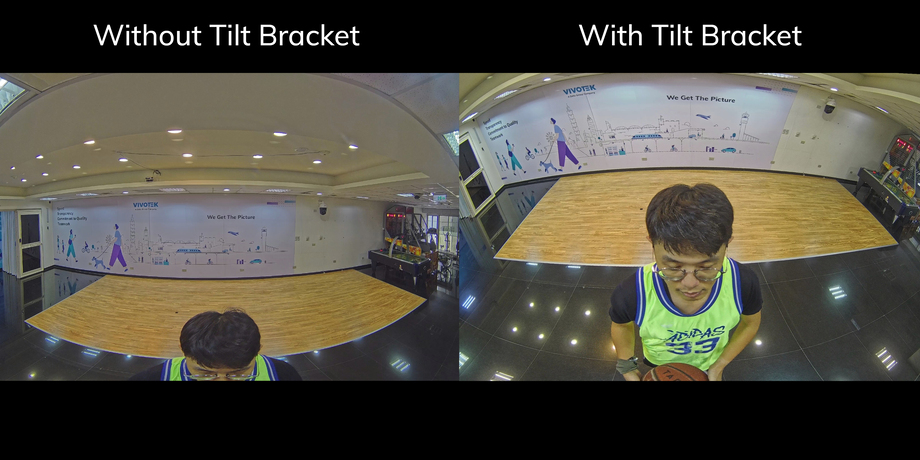

精巧型拼接全景攝影機擁有廣闊的視野，但隨附的傾斜支架可提供更高的靈活性。它可讓您傾斜並調整攝影機角度 15-20 度，確保捕捉到難以顧及的區域，徹底消除安全覆蓋範圍中的潛在盲點。
本款精巧型拼接全景攝影機搭載了 VIVOTEK AI 技術，可根據顏色、性別和類型等特徵來識別人員和車輛，有效提升調查效率。精準的物件追蹤功能可簡化搜尋流程，並能將重複項目降到最低。

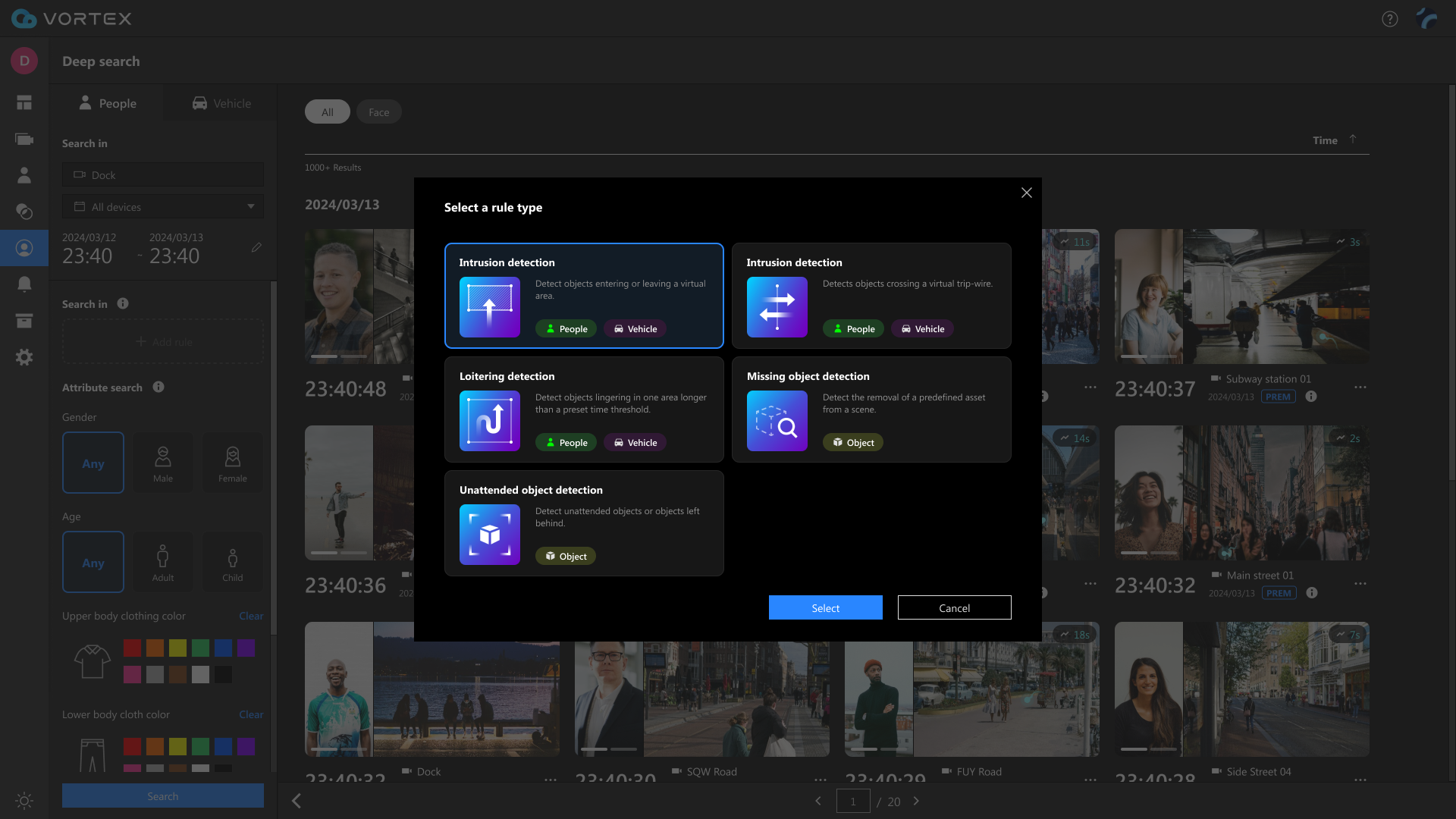

透過深度搜索頁面的「場景搜索」功能，快速檢視攝影機畫面。利用入侵、越線或徘徊檢測來提升效率。在感興趣的區域畫出一條線並選擇時間範圍，找出所有經過該線的事件。這使得用戶能夠迅速識別和回應安全事件。

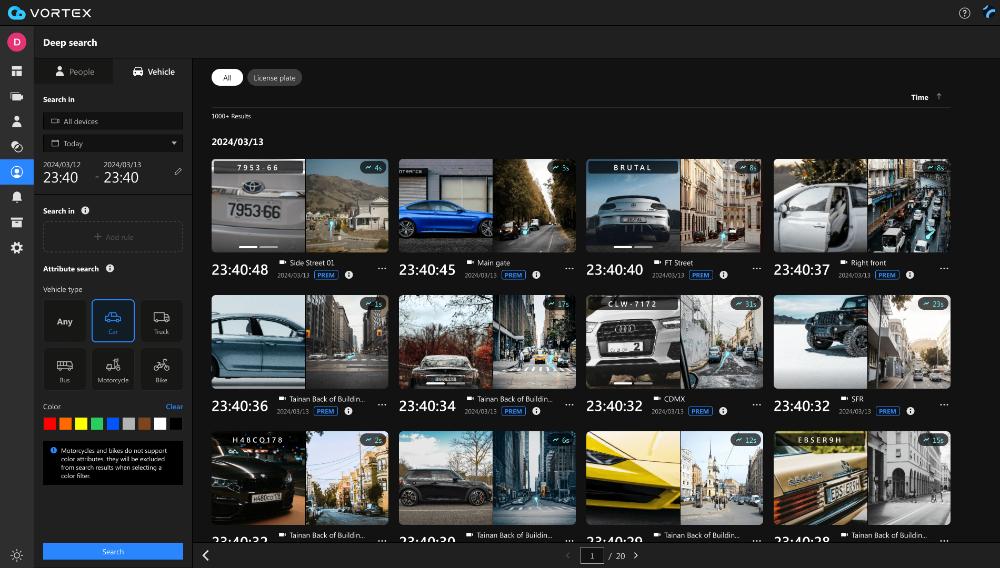

VORTEX 的深度搜尋利用 AI 提升搜尋效率和精確度。功能包括特徵搜尋、場景搜尋和特徵再識別。通過使用元數據定義的特徵和規則，無需手動翻閱錄影，實現更快、更智能、更便捷的影像證據搜尋。可通過設定如性別或車牌號碼等搜尋目標，快速找到鎖定人物或車輛。
VORTEX 攝影機輕鬆連接雲端，無需額外伺服器即可擴展。享受長達十年的保固和持續的授權訂閱，顯著節省每台攝影機的成本。
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
HD: 2560 x 1920
SD: 1280 x 960
Lens Type
Fixed-focal
Focal Length
f = 1.47 mm
Aperture
F2.7
Iris
Fixed iris
Field of View
180° (Horizontal)
120° (Vertical)
180° (Diagonal)
Camera Movement
Tilt: ±20°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
-
WDR Technology
WDR Pro
Minimum Illumination
0.08 lux @ F2.7 (Color)
0.005lux @ F2.7 (B/W)
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SD Card)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
One-way Audio
Interface
Built-in microphone
Effective Range
5 meters
Power and Network
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
MAX. 9.12W
Connectivity
RJ-45 cable connector for 10/100 Mbps PoE network connection
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4,NTP,RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-10°C ~ 55°C (14°F~ 131°F)
Working Temperature:
-30°C ~ 55°C (-22°F~131°F)
Humidity
98% RH (non-condensing)
Certifications
EMC
CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
Safety
UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
Environment
IK10 (IEC 60529), IP66 (IEC 60529)
IA
BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Warranty
Up to 10 years (Depends on license type)
Included Accessories
Quick installation guide, mounting bracket, tilt bracket, screw pack
Mechanical
Weight
338 g
Dimensions
115 x 65 x 59 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application
Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection
Application with xPro License
AI Hub (Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight), Facial recognition
Application Available with Advanced AI License
License plate recognition
