VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

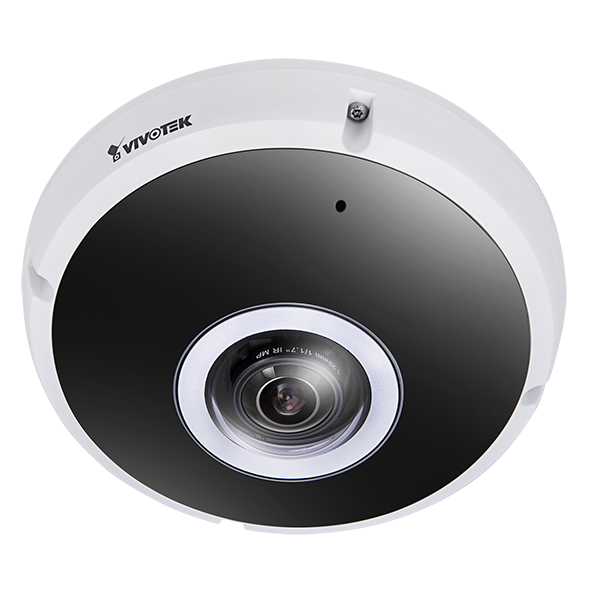

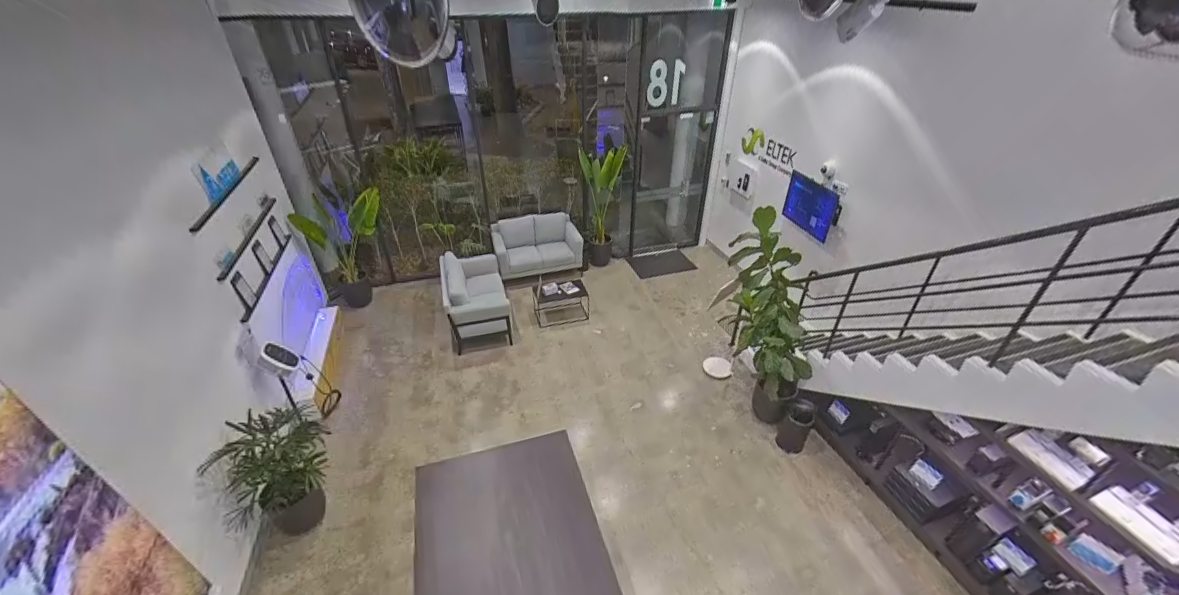

VORTEX fisheye cameras provide 360° coverage with no blind spots, which is ideal for full situational awareness. Dewarping technology lets users focus on specific areas with various viewing modes for a comprehensive and quick overview.

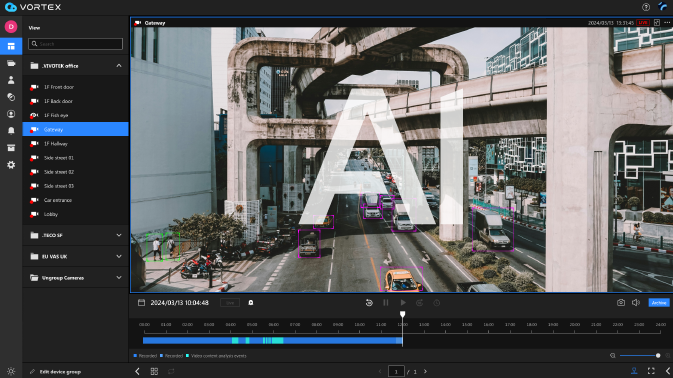

VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

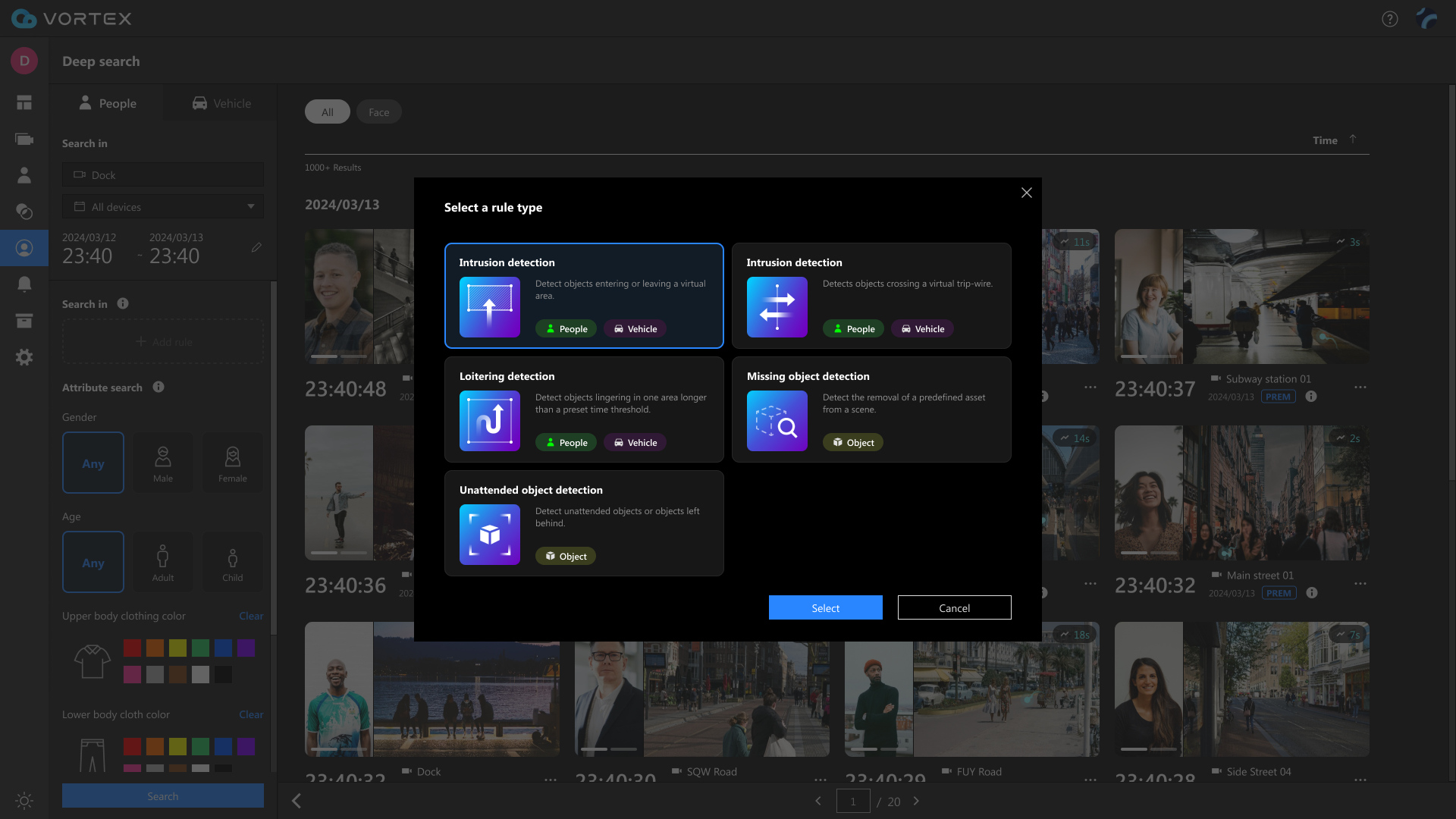

Quickly review camera footage with the Scene Search feature from the Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.

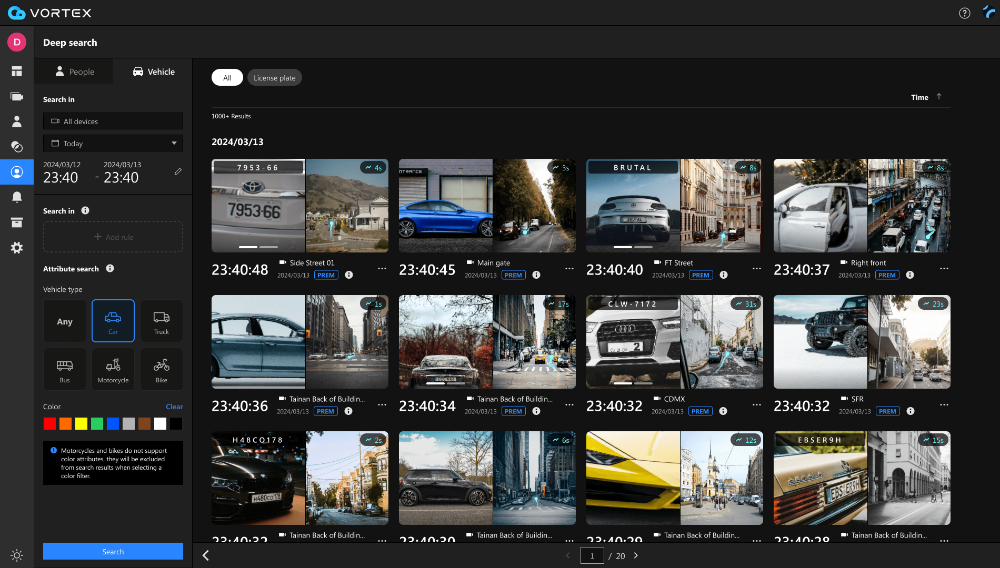

VORTEX's Deep Search leverages AI for efficient and enhanced search capabilities. It includes Attribute Search, Scene Search, and Re-Search. Using metadata-defined attributes and rules eliminates the need to scroll through footage, enabling faster, smarter, and easier video evidence searches. Quickly find the target person or vehicle by setting criteria such as gender or license plate number.
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
Camera Features
Image Sensor
1/2.3" Progressive CMOS
Resolution
SD: 1024 x 1024
HD: 2816 x 2816
Lens Type
Fixed-focal
Focal Length
f = 1.18mm
Aperture
F2.18
Iris
Fixed iris
Field of View
180° (Horizontal)
180° (Vertical)
180° (Diagonal)
Camera Movement
-
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators, effective up to 20 meters (50IRE) with Smart IR II, IR LED*4
WDR Technology
WDR Pro
Minimum Illumination
0.1 lux @ F2.18 (Color)
<0.005 lux @ F2.18 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 512GB industrial SD Card)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2816 x 2816@15fps 3Mbps upload
SD Video 1024 x 1024@15fps 300Kbps upload
Standard Audio Settings
Audio
One-way Audio
Interface
Built-in microphone
Effective Range
5 meters
Power and Network
Power Input
IEEE 802.3at PoE Class 4
Power Consumption
Max.22.8W/10.75 W
Connectivity
RJ-45 cable connector for 10/100 Mbps PoE network connection
RTSP
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-40°C ~ 55°C (-40°F ~ 131°F) (IR off)
-40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity
90% RH (non-condensing)
Certifications
EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A);
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22);
Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
Warranty
10 years
Included Accessories
Quick installation guide, alignment sticker, screw pack, desiccant bag
Mechanical
Weight
701 g
Dimensions
ø 150 x 68.2 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
People Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics
Unattended object detection, Missing object detection
