VORTEX 將監控擴展統整在一個平台上，提供與各種攝影機管理的無縫一致性。自動化任務以提高生產力和效率。享受流暢的遠端管理，即時推送通知到您的手機、電子郵件、警報和 Webhooks，簡化 IT 維護。

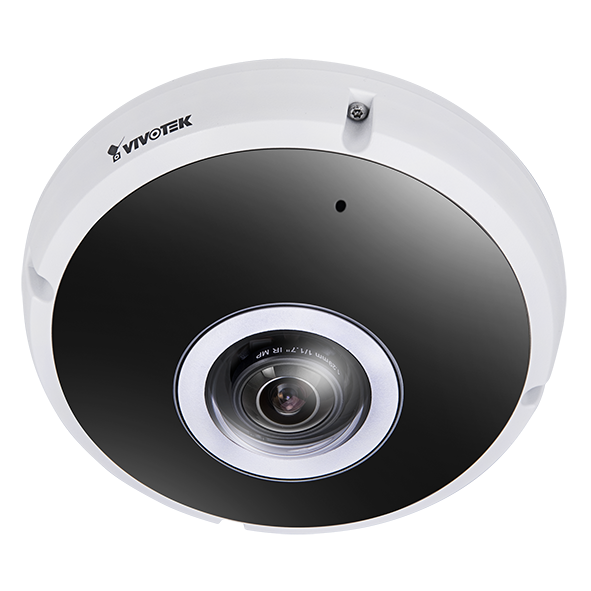

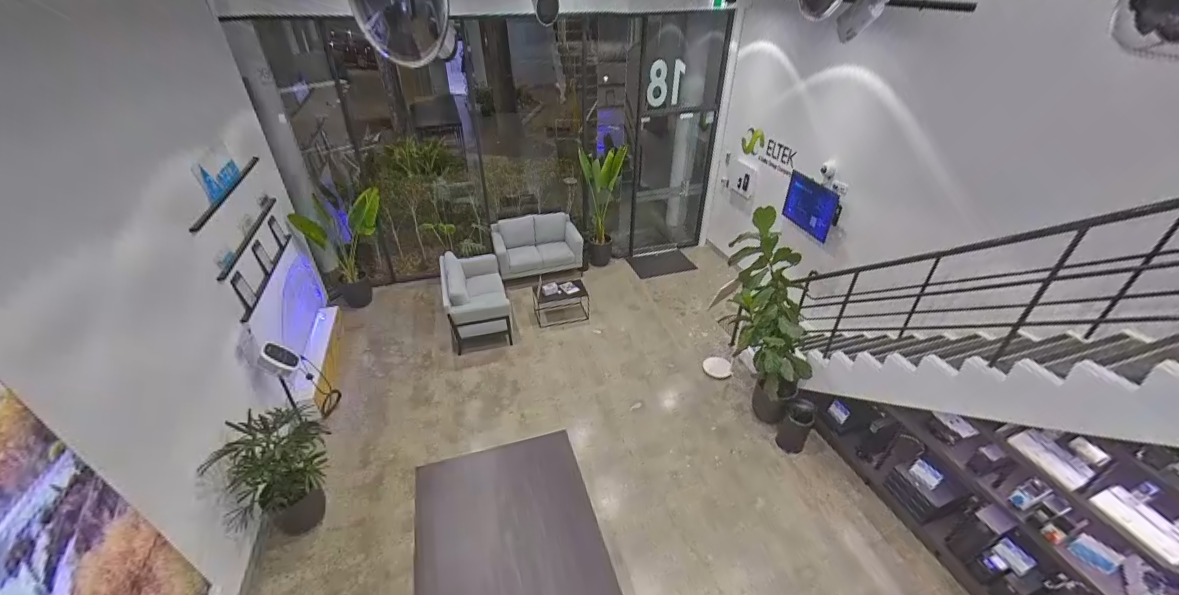

VORTEX 魚眼攝影機提供無死角的 360° 視野，適合全方位的情境。去扭曲技術允許用戶專注於特定區域，通過多種視圖模式獲取全面且迅速的概覽。

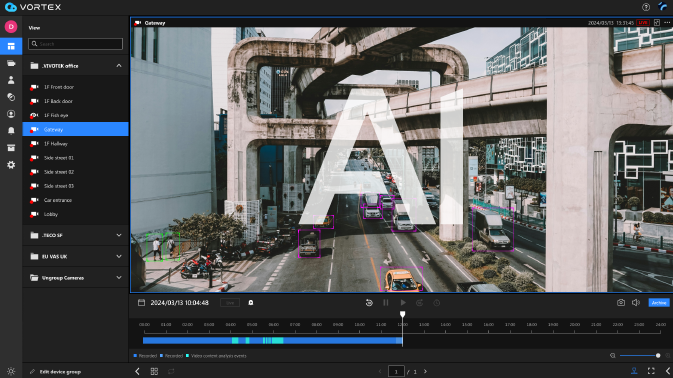

VORTEX 通過 AI 分析提供實時警報和通知，如入侵、越線和徘徊檢測。其機器學習能力隨時間提升準確性，確保有效的監控效果和安心感。

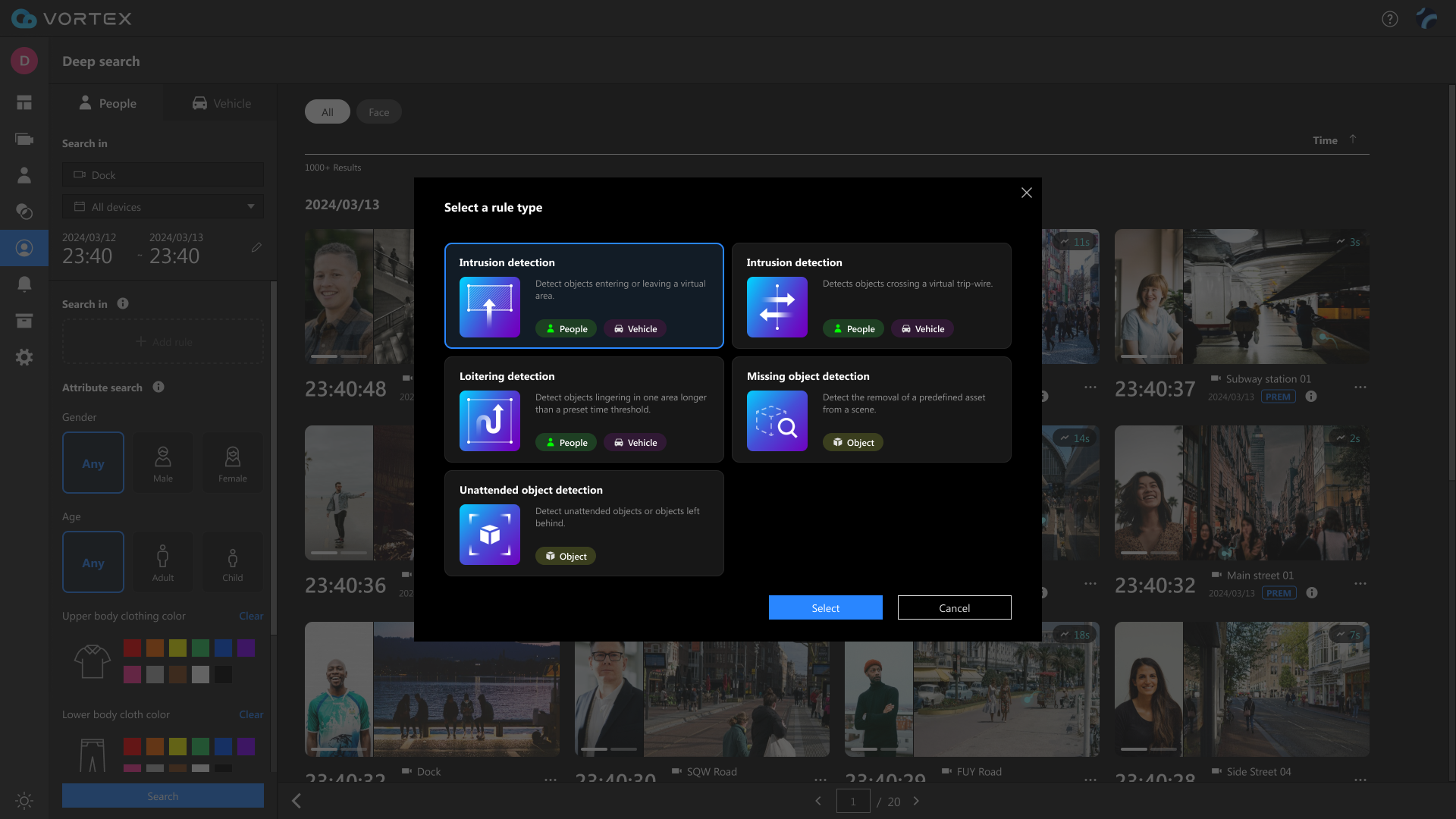

透過深度搜索頁面的「場景搜索」功能，快速檢視攝影機畫面。利用入侵、越線或徘徊檢測來提升效率。在感興趣的區域畫出一條線並選擇時間範圍，找出所有經過該線的事件。這使得用戶能夠迅速識別和回應安全事件。

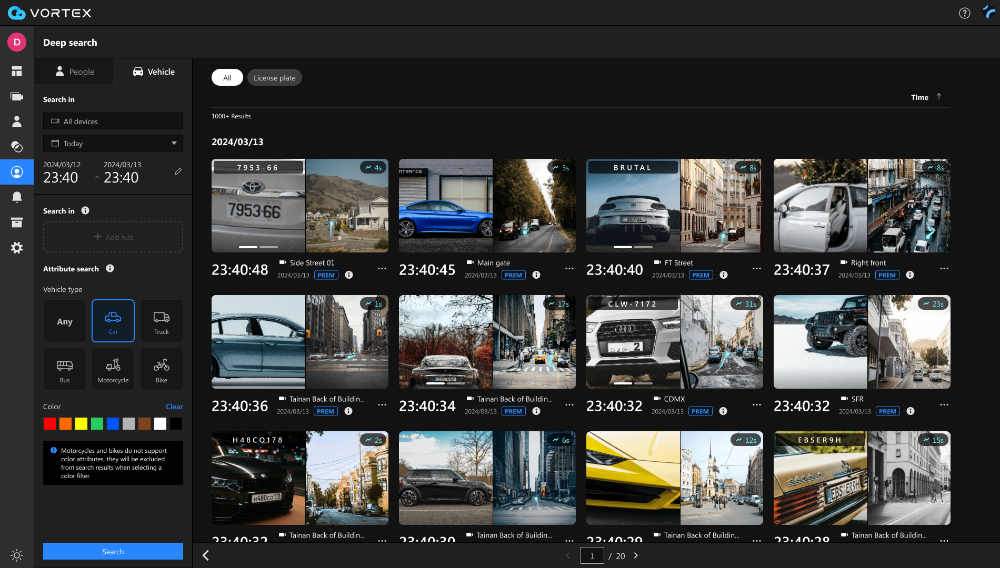

VORTEX 的深度搜尋利用 AI 提升搜尋效率和精確度。功能包括特徵搜尋、場景搜尋和特徵再識別。通過使用元數據定義的特徵和規則，無需手動翻閱錄影，實現更快、更智能、更便捷的影像證據搜尋。可通過設定如性別或車牌號碼等搜尋目標，快速找到鎖定人物或車輛。
VORTEX 攝影機輕鬆連接雲端，無需額外伺服器即可擴展。享受長達十年的保固和持續的授權訂閱，顯著節省每台攝影機的成本。
Camera Features
Image Sensor
1/2.3" Progressive CMOS
Resolution
SD: 1024 x 1024
HD: 2816 x 2816
Lens Type
Fixed-focal
Focal Length
f = 1.18mm
Aperture
F2.18
Iris
Fixed iris
Field of View
180° (Horizontal)
180° (Vertical)
180° (Diagonal)
Camera Movement
-
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators, effective up to 20 meters (50IRE) with Smart IR II, IR LED*4
WDR Technology
WDR Pro
Minimum Illumination
0.1 lux @ F2.18 (Color)
<0.005 lux @ F2.18 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 512GB industrial SD Card)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2816 x 2816@15fps 3Mbps upload
SD Video 1024 x 1024@15fps 300Kbps upload
Standard Audio Settings
Audio
One-way Audio
Interface
Built-in microphone
Effective Range
5 meters
Power and Network
Power Input
IEEE 802.3at PoE Class 4
Power Consumption
Max.22.8W/10.75 W
Connectivity
RJ-45 cable connector for 10/100 Mbps PoE network connection
RTSP
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-40°C ~ 55°C (-40°F ~ 131°F) (IR off)
-40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity
90% RH (non-condensing)
Certifications
EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A);
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22);
Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
Warranty
Up to 10 years (Depends on license type)
Included Accessories
Quick installation guide, alignment sticker, screw pack, desiccant bag
Mechanical
Weight
701 g
Dimensions
ø 150 x 68.2 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application
Intrusion detection, Line crossing detection, Loitering detection,Unattended object detection, Missing object detection
AI Hub with xPro License
Attribute Search, Scene Search, Re-Search, Profile Search, LPR Search
Application available with license
-
