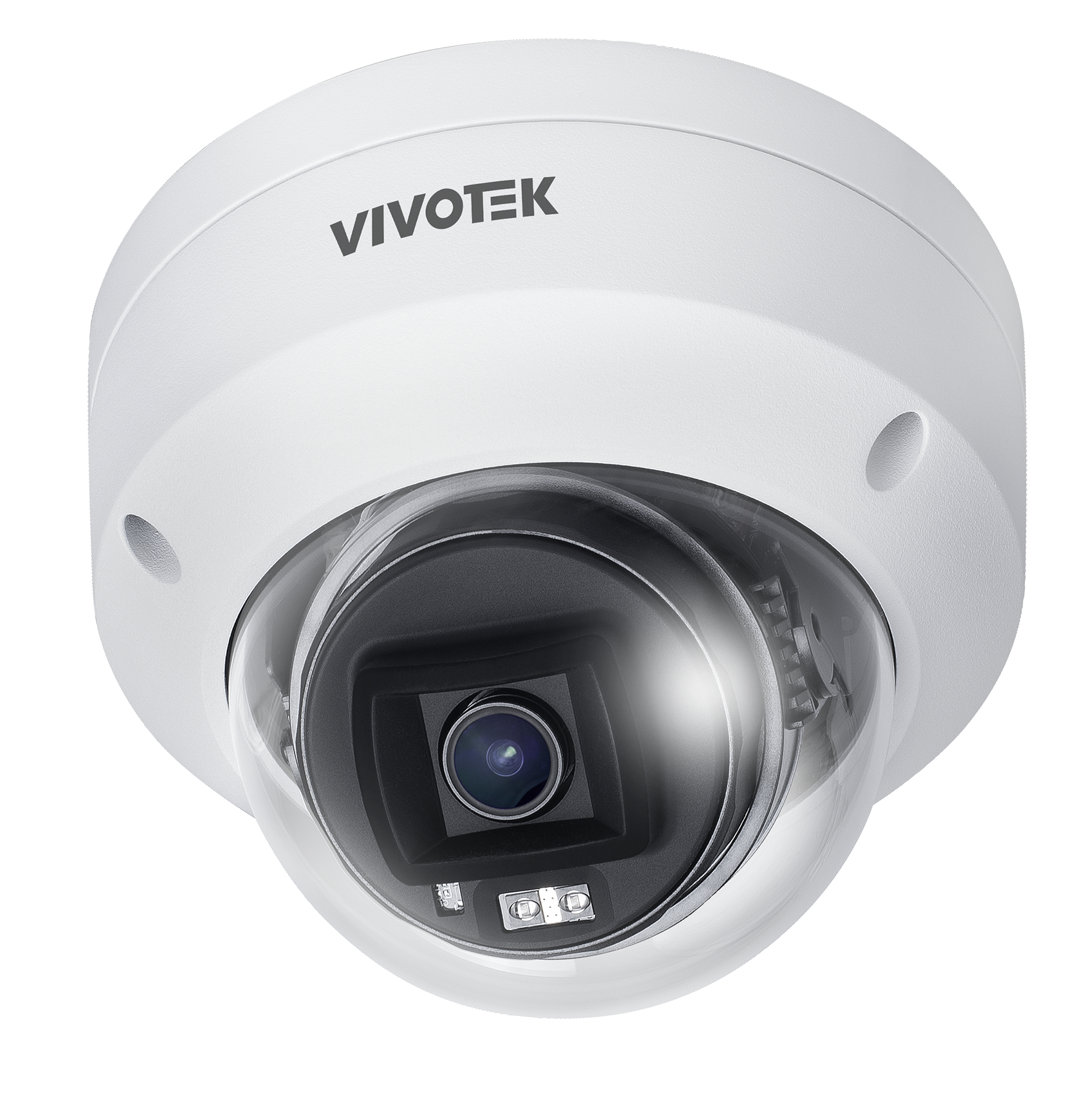

Powered by WDR Pro, the camera delivers sharp, high-quality images, ensuring accurate detail capture in difficult high-contrast conditions for comprehensive surveillance.
IK10 metal housing safeguards the camera from vandal attacks and retains its color for a long-lasting, polished look.
VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.
Quickly review camera footage with the Scene Search feature from Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.
VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Resolution
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F1.6
Iris
Fixed iris
Field of View
111.0° (Horizontal)
59.0° (Vertical)
133.0° (Diagonal)
Camera Movement
Pan 350° Tilt: 75° Rotate:350°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
30 meters
WDR Technology
WDR Pro
Minimum Illumination
0.055 lux @ F1.6 (Color)
0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way Audio
Interface
External line Input
External line output
Power and Network
Power Input
IEEE 802.3af PoE Class 3
DC 12V
Power Consumption
DC12V: Max. 6.24W
PoE: Max. 6.38W, typical 3.6 W
Connectivity
RJ-45 cable connector for 10/100/100 Mbps Network/PoE connection
Audio line input
Audio line output
DC 12V power input
Digital input *1
Digital output *1
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 4 clients
*Live viewing for 4 clients
*live viewing up to 2 clients and playback 2 clients)
Security
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-30°C ~ 60°C (-22°F ~ 140°F)
Working Temperature:
-30°C ~ 60°C (-22°F ~ 140°F)
Humidity
90% RH (non-condensing)
Certifications
EMC:
CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety:
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
Environment:
IK10 (IEC 62262), IP66,IP67 (IEC 60529)
IA:
BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Warranty
Up to 5 years (Depends on license type)
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
562 g
Dimensions
Ø 117.2 x 89.6 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application
Intrusion detection, Line crossing detection, Loitering detection
AI Hub with xPro License
Deep search, Scene search, Think search, Event insight
