VORTEX 將監控擴展統整在一個平台上，提供與各種攝影機管理的無縫一致性。自動化任務以提高生產力和效率。享受流暢的遠端管理，即時推送通知到您的手機、電子郵件、警報和 Webhooks，簡化 IT 維護。

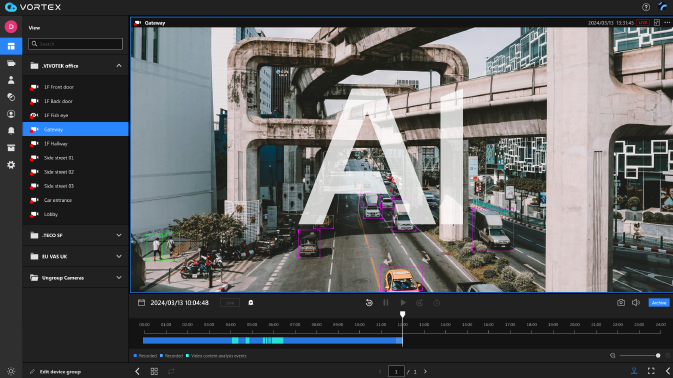

VORTEX 通過 AI 分析提供實時警報和通知，如入侵、越線和徘徊檢測。其機器學習能力隨時間提升準確性，確保有效的監控效果和安心感。

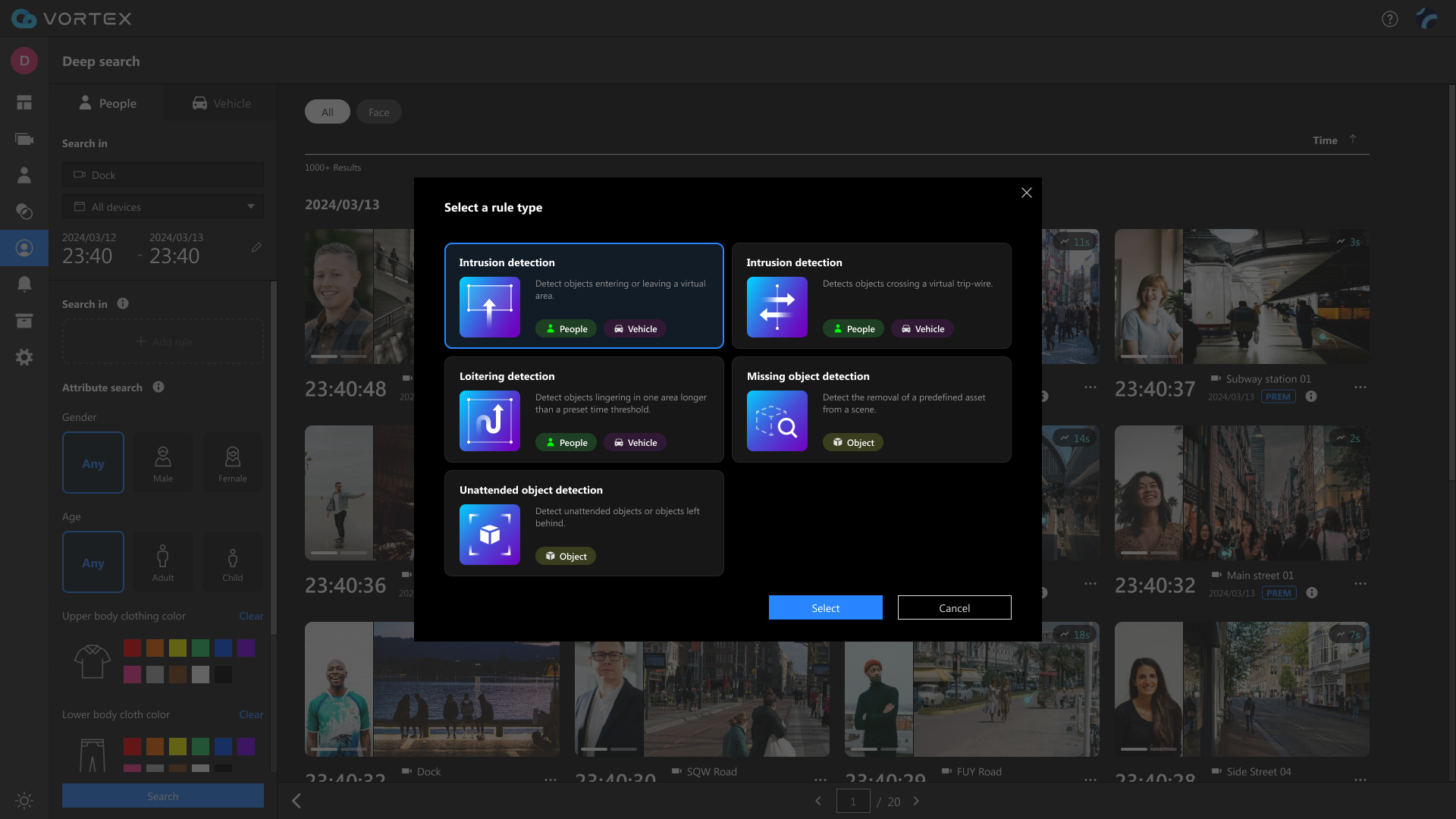

透過深度搜索頁面的「場景搜索」功能，快速檢視攝影機畫面。利用入侵、越線或徘徊檢測來提升效率。在感興趣的區域畫出一條線並選擇時間範圍，找出所有經過該線的事件。這使得用戶能夠迅速識別和回應安全事件。

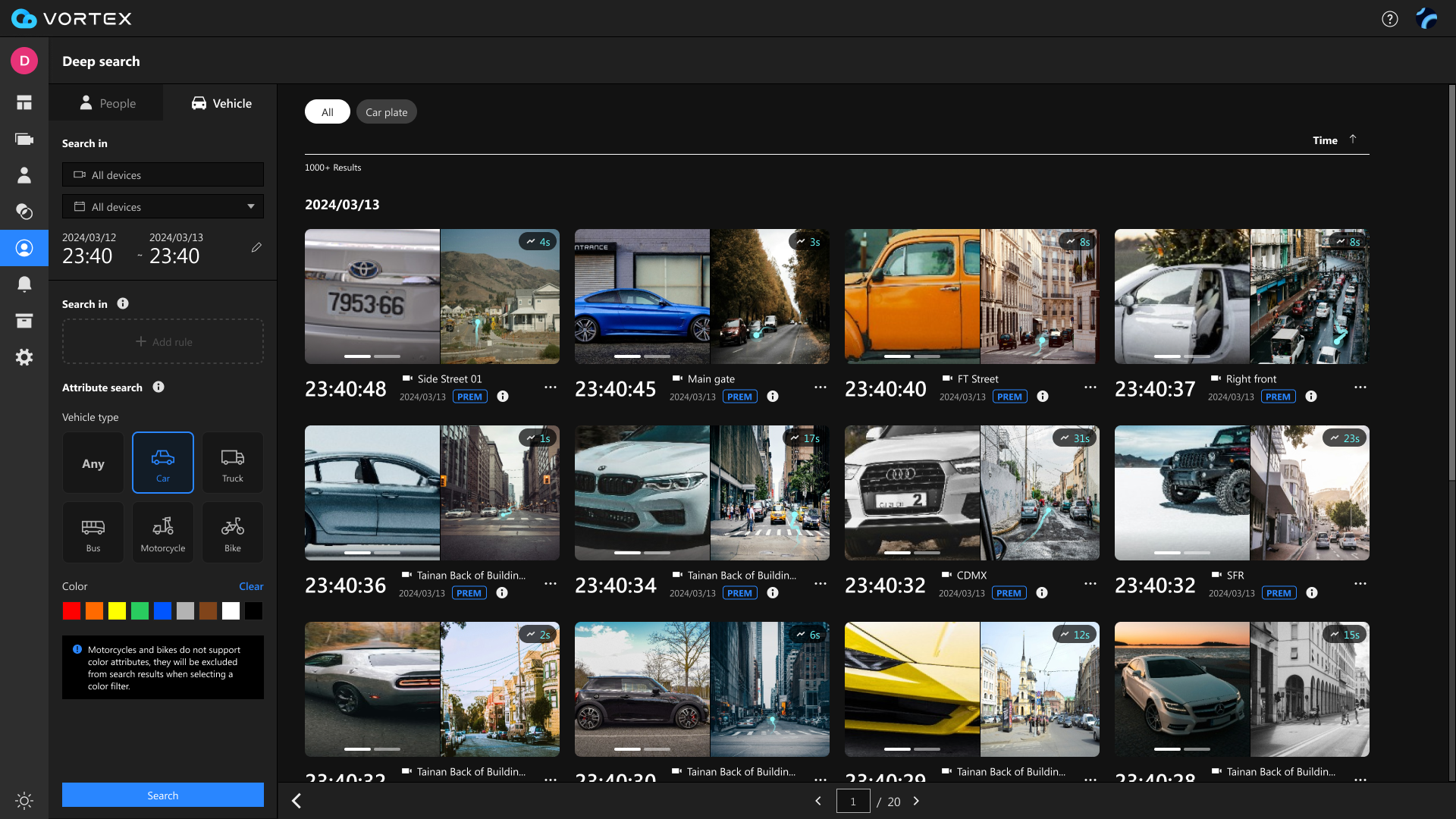

VORTEX 的深度搜尋利用 AI 提升搜尋效率和精確度。功能包括特徵搜尋、場景搜尋和特徵再識別。通過使用元數據定義的特徵和規則，無需手動翻閱錄影，實現更快、更智能、更便捷的影像證據搜尋。可通過設定如性別或車牌號碼等搜尋目標，快速找到鎖定人物或車輛。
VORTEX 攝影機輕鬆連接雲端，無需額外伺服器即可擴展。享受長達十年的保固和持續的授權訂閱，顯著節省每台攝影機的成本。

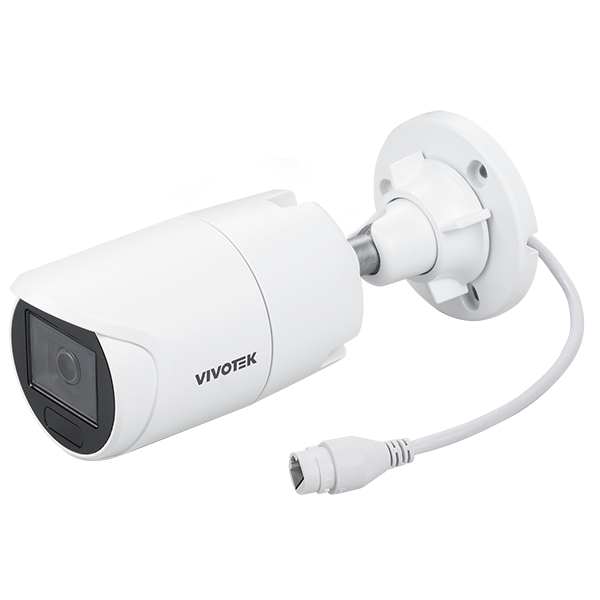

Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
Fixed-focal
Focal Length
f = 3.6 mm
Aperture
F2.0
Iris
Fixed iris
Field of View
79.6° (Horizontal)
57.8° (Vertical)
105.8° (Diagonal)
Camera Movement
Tilt: 90° Rotate:180°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
30 meters
WDR Technology
WDR Pro
Minimum Illumination
0.055 lux @ F2.0 (Color)
0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
One-way Audio
Interface
Built-in microphone
Effective Range
5 meters
Power and Network
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 10.6 W / 6.0 W (IR on/off)
Connectivity
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4,NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-10°C ~ 50°C (-14°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity
90% RH (non-condensing)
Certifications
EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1);
Environment: IK10 (IEC 62262), IP66 (IEC 60529); BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Warranty
10 years
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
925 g
Dimensions
ø 91.0 x 226.6 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
People Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics
Unattended object detection, Missing object detection
