VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

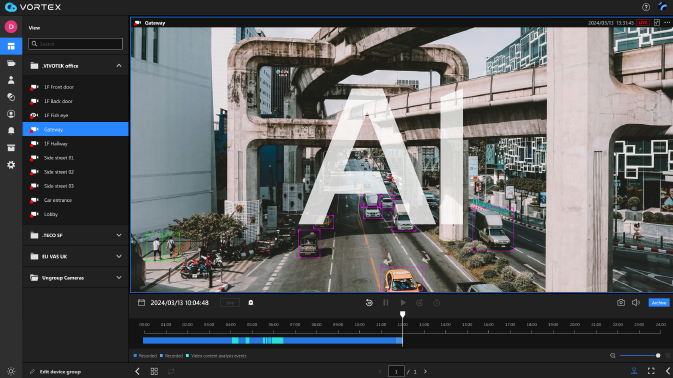

VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.

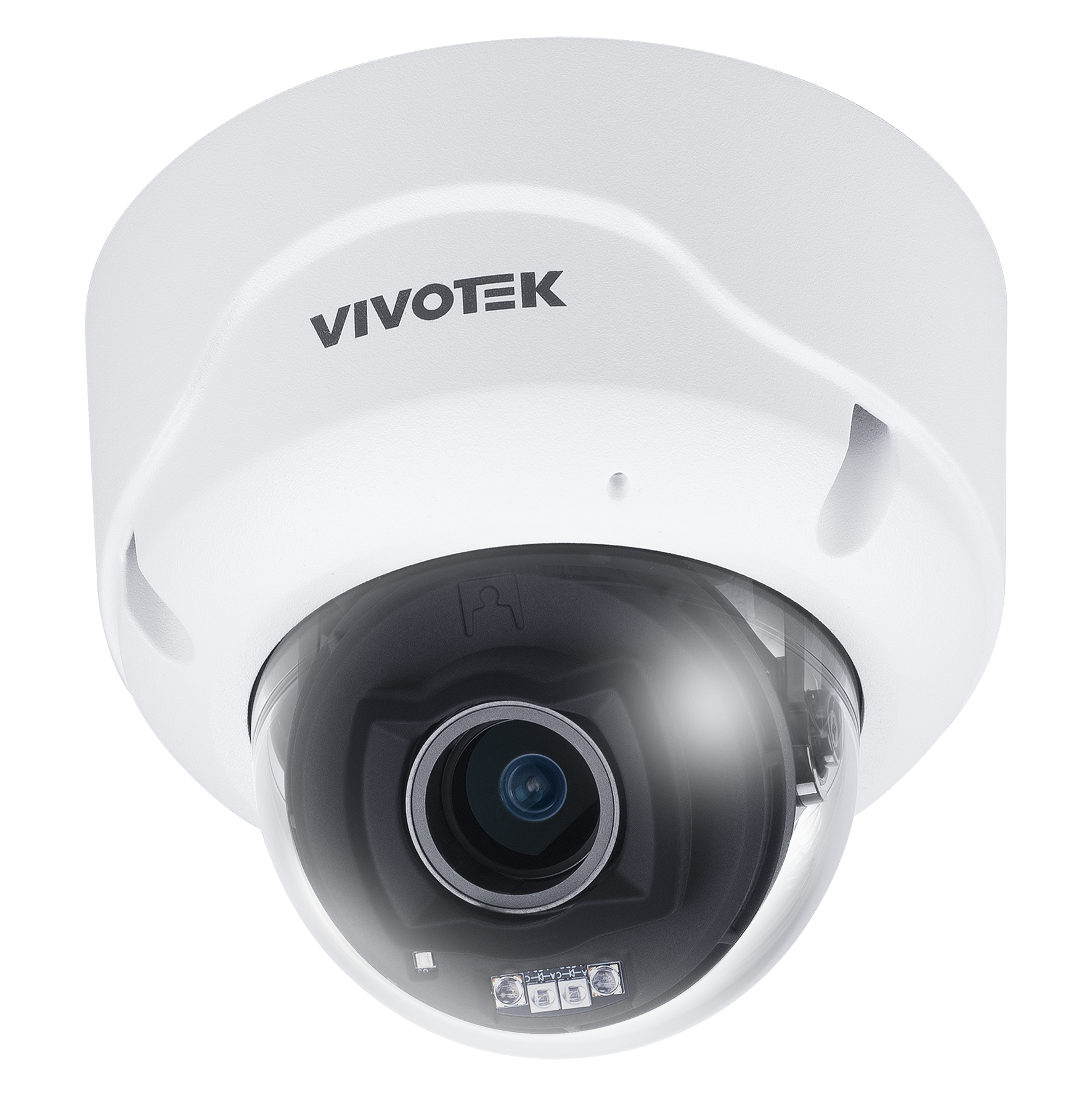

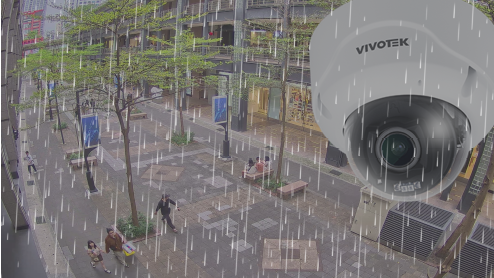

Premium Dome AI Cameras support IK10 impact
resistance and IP66 weatherproofing, ensuring durability in
harsh conditions.
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
HD: 2560 x 1920
SD: 1280 x 960
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.8 ~ 12 mm
Aperture
F1.6 ~ F3.3
Iris
P-iris
Field of View
95.4° ~ 28.7° (Horizontal)
68.8° ~ 21.5° (Vertical)
129.6° ~ 35.9°(Diagonal)
Camera Movement
Pan: 350° Tilt: 80° Rotate:350°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
WDR Technology
WDR Pro
Minimum Illumination
0.04 lux @ F1.6 (Color)
0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way audio (Full duplex)*
* Requires AO-015 cable
Interface
Built-in microphone
Two-way audio connectivity by optional I/O & audio cable
Effective Range
5 Meters
Power and Network
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 12.4W/ 9.6W (IR on/off)
Connectivity
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio line input*
Audio line output*
Digital input: 1*
Digital output: 1*
* Requires AO-015 cable
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-35°C ~ 60°C (-31°F ~ 140°F) (IR off)
-35°C ~ 50°C (-31°F ~ 122°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC:
CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)IC (ICES-003 Issue 7, Class A)
Safety:
UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471),UKCA (BS EN IEC 62368-1)
Environment:
NEMA (NEMA 250 Type 4X), IK10 (IEC 62262), IP66 (IEC 60529),BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Warranty
10 years
Included Accessories
Quick installation guide, alignment sticker, screw pack, L-shaped wrench
Mechanical
Weight
990 g
Dimensions
ø 134 x 116 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
People Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics
Unattended object detection, Missing object detection
