VORTEX 將監控擴展統整在一個平台上，提供與各種攝影機管理的無縫一致性。自動化任務以提高生產力和效率。享受流暢的遠端管理，即時推送通知到您的手機、電子郵件、警報和 Webhooks，簡化 IT 維護。

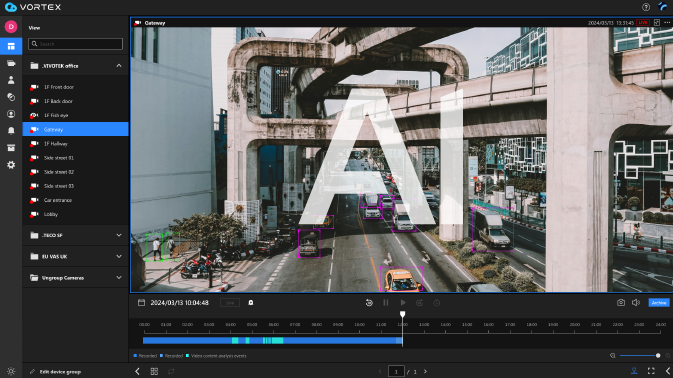

VORTEX 通過 AI 分析提供實時警報和通知，如入侵、越線和徘徊檢測。其機器學習能力隨時間提升準確性，確保有效的監控效果和安心感。
RealSight Engine 解決因快速移動所產生的影像動態模糊問題，能準確捕捉人物細節，無需調整快門速度即可自動提升畫面清晰度。

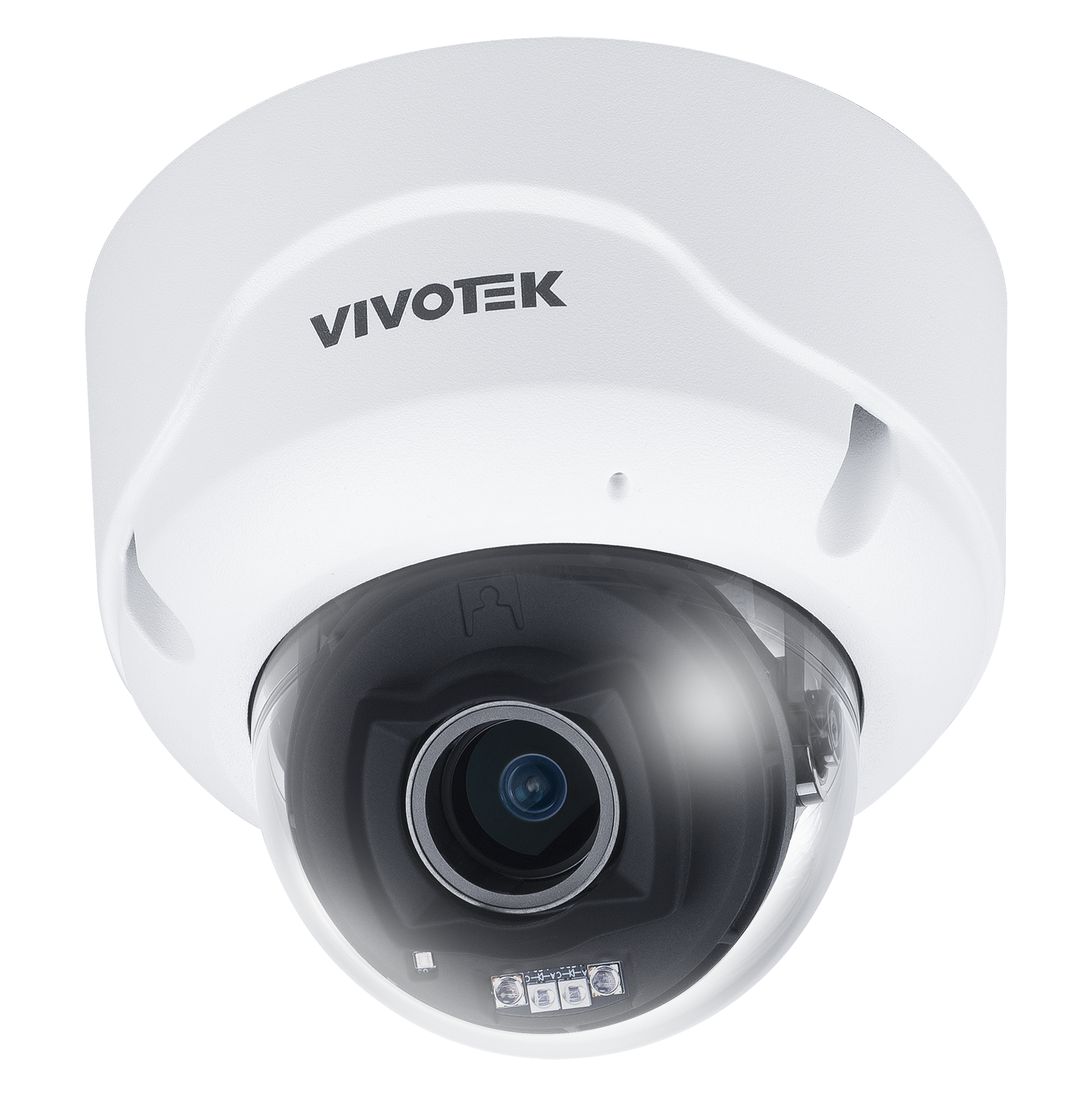

高階半球型 AI 攝影機具備 IK10 防破壞與 IP66 防水防塵等級，確保在惡劣天候與高風險環境中依然穩定耐用。
VORTEX 攝影機輕鬆連接雲端，無需額外伺服器即可擴展。享受長達十年的保固和持續的授權訂閱，顯著節省每台攝影機的成本。
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
HD: 2560 x 1920
SD: 1280 x 960
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.8 ~ 12 mm
Aperture
F1.6 ~ F3.3
Iris
P-iris
Field of View
95.4° ~ 28.7° (Horizontal)
68.8° ~ 21.5° (Vertical)
129.6° ~ 35.9°(Diagonal)
Camera Movement
Pan: 350° Tilt: 80° Rotate:350°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
WDR Technology
WDR Pro
Minimum Illumination
0.04 lux @ F1.6 (Color)
0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way audio (Full duplex)*
* Requires AO-015 cable
Interface
Built-in microphone
Two-way audio connectivity by optional I/O & audio cable
Effective Range
5 meters
Power and Network
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 12.4W/ 9.6W (IR on/off)
Connectivity
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio line input*
Audio line output*
Digital input: 1*
Digital output: 1*
* Requires AO-015 cable
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-35°C ~ 60°C (-31°F ~ 140°F) (IR off)
-35°C ~ 50°C (-31°F ~ 122°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC
CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS
CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)IC (ICES-003 Issue 7, Class A)
Safety
UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471),UKCA (BS EN IEC 62368-1)
Environment
IK10 (IEC 62262), IP66, IP67 (IEC 60529),BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Warranty
10 years
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
990 g
Dimensions
ø 134 x 116 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
People Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics
Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics
Unattended object detection, Missing object detection
AM-412
Corner Mount Adapter

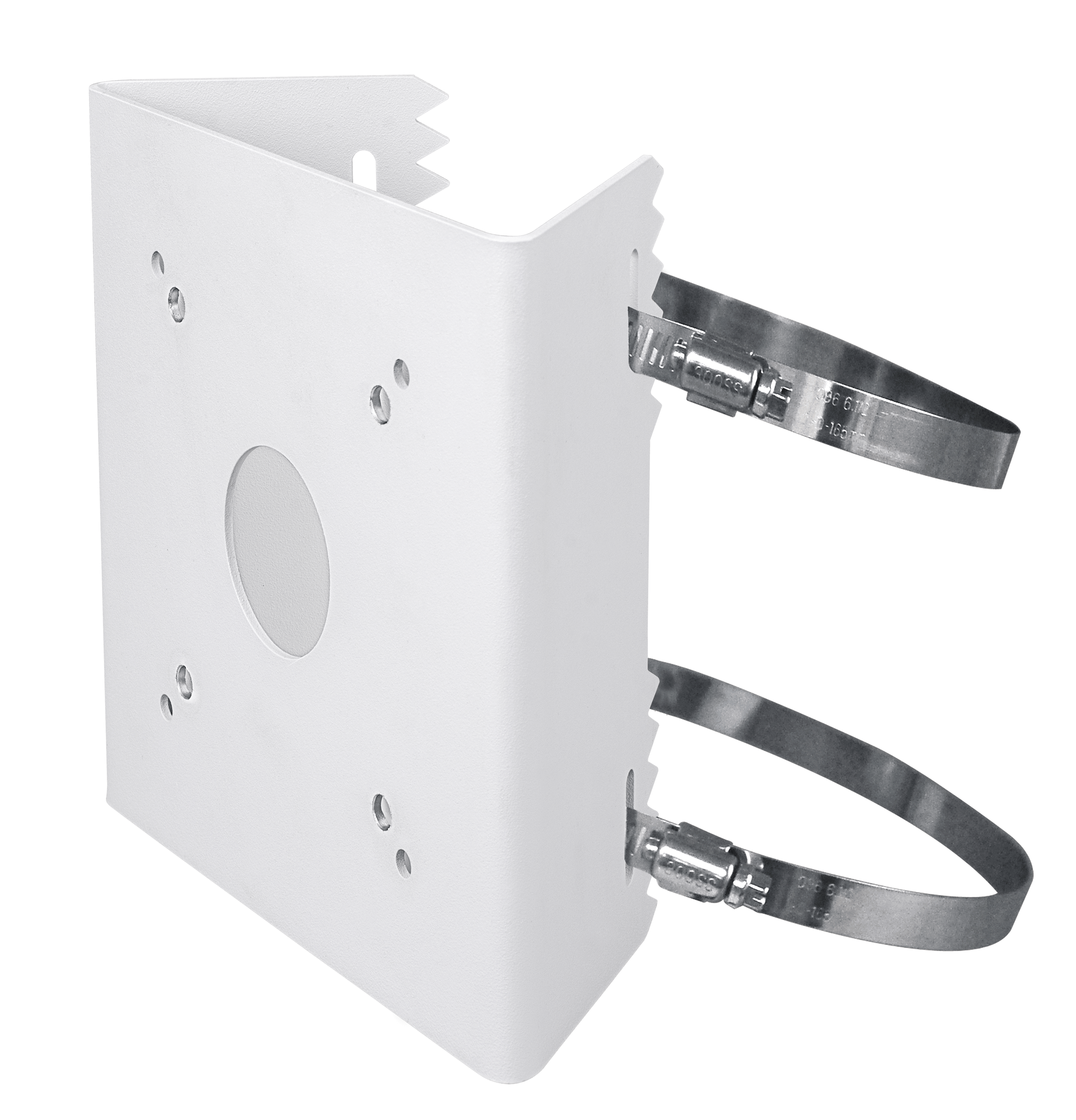

AM-312_V03 (90~152mm)
Pole Mount Adapter (90~152mm)
AM-312_V03 (60mm)
Pole Mount Adapter(60mm)

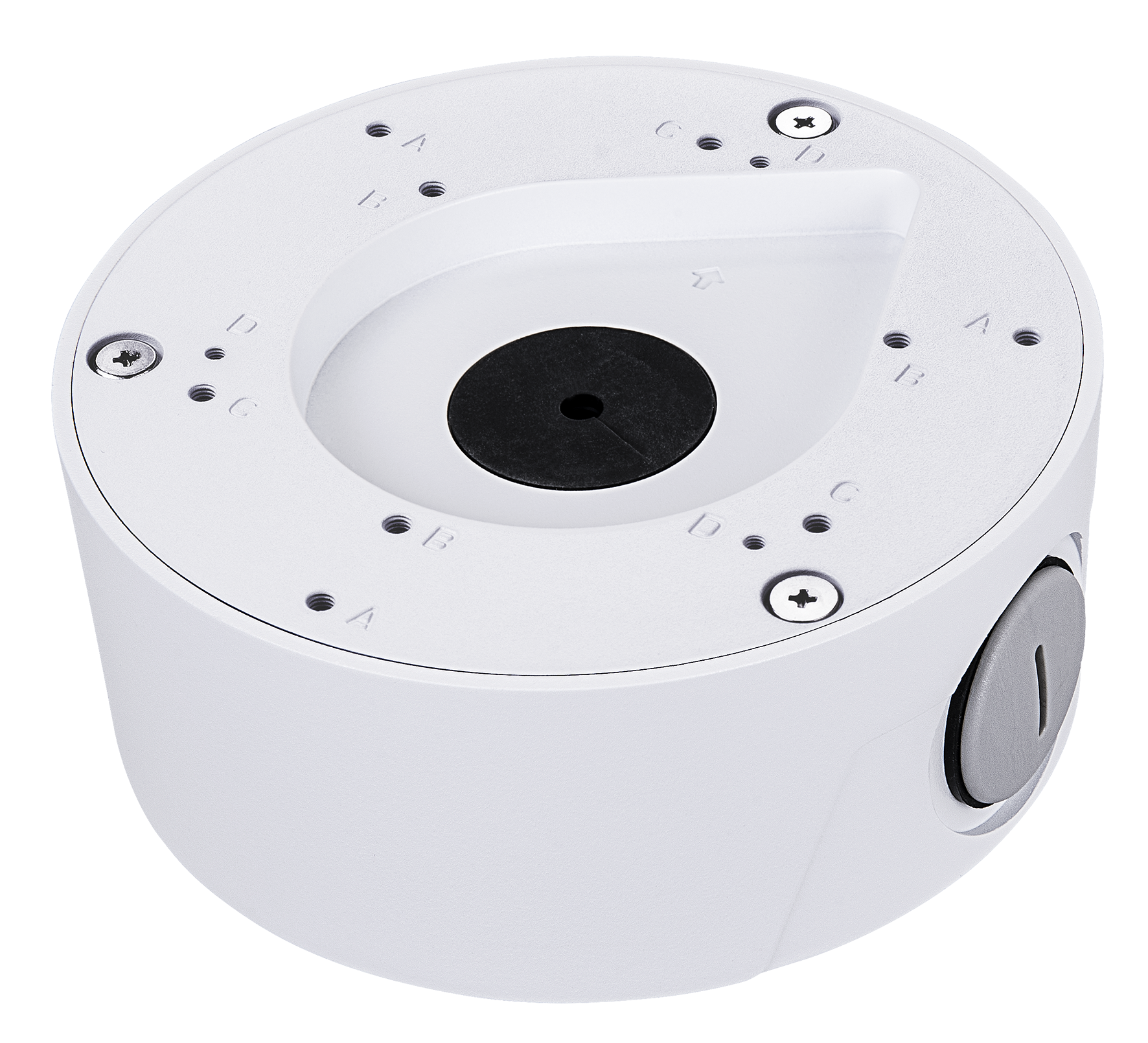

AM-71B
Outdoor Conduit Box
AM-21A (v02)
L-shape Bracket
Mounting

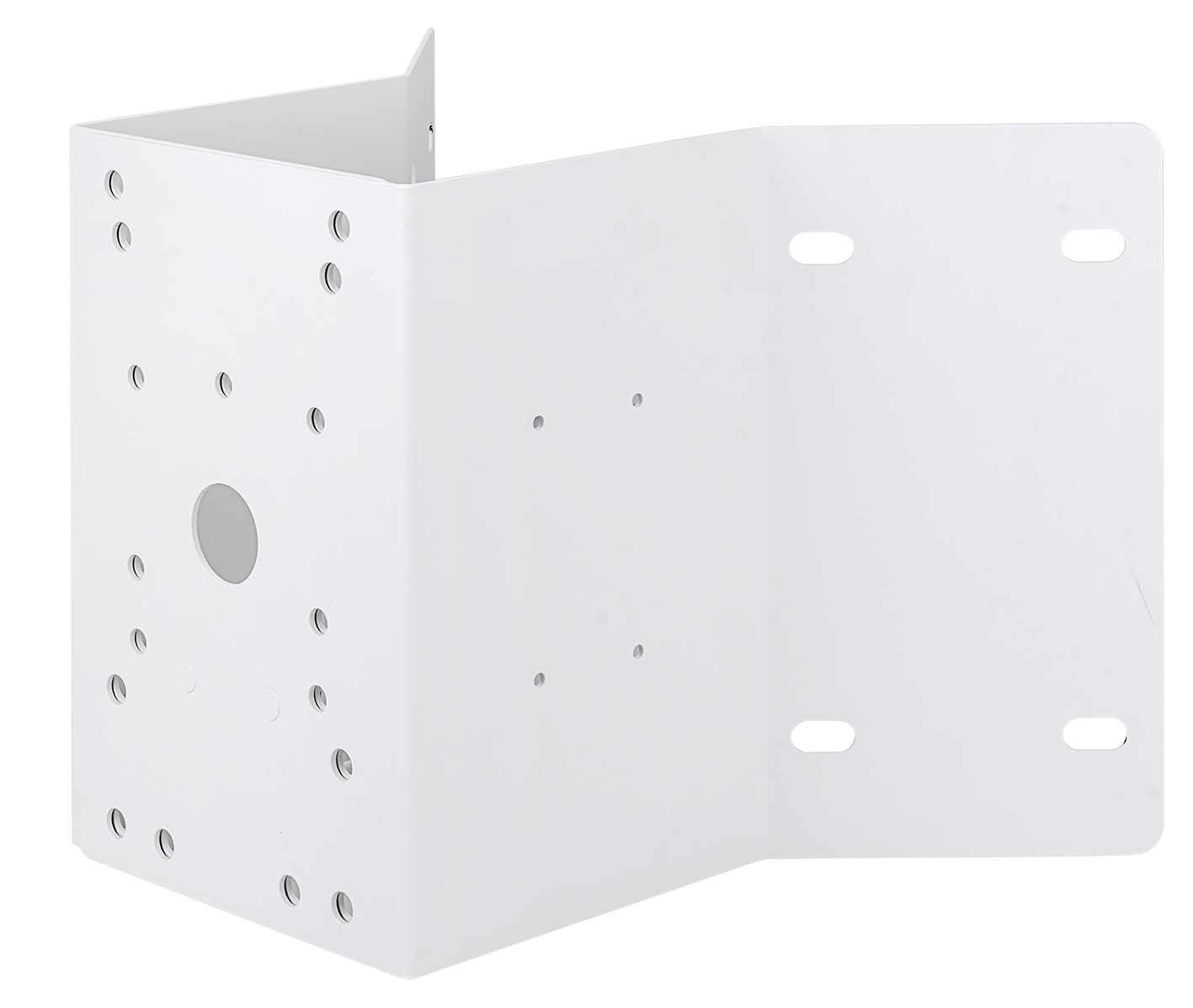

AM-414
Corner Mount Adapter

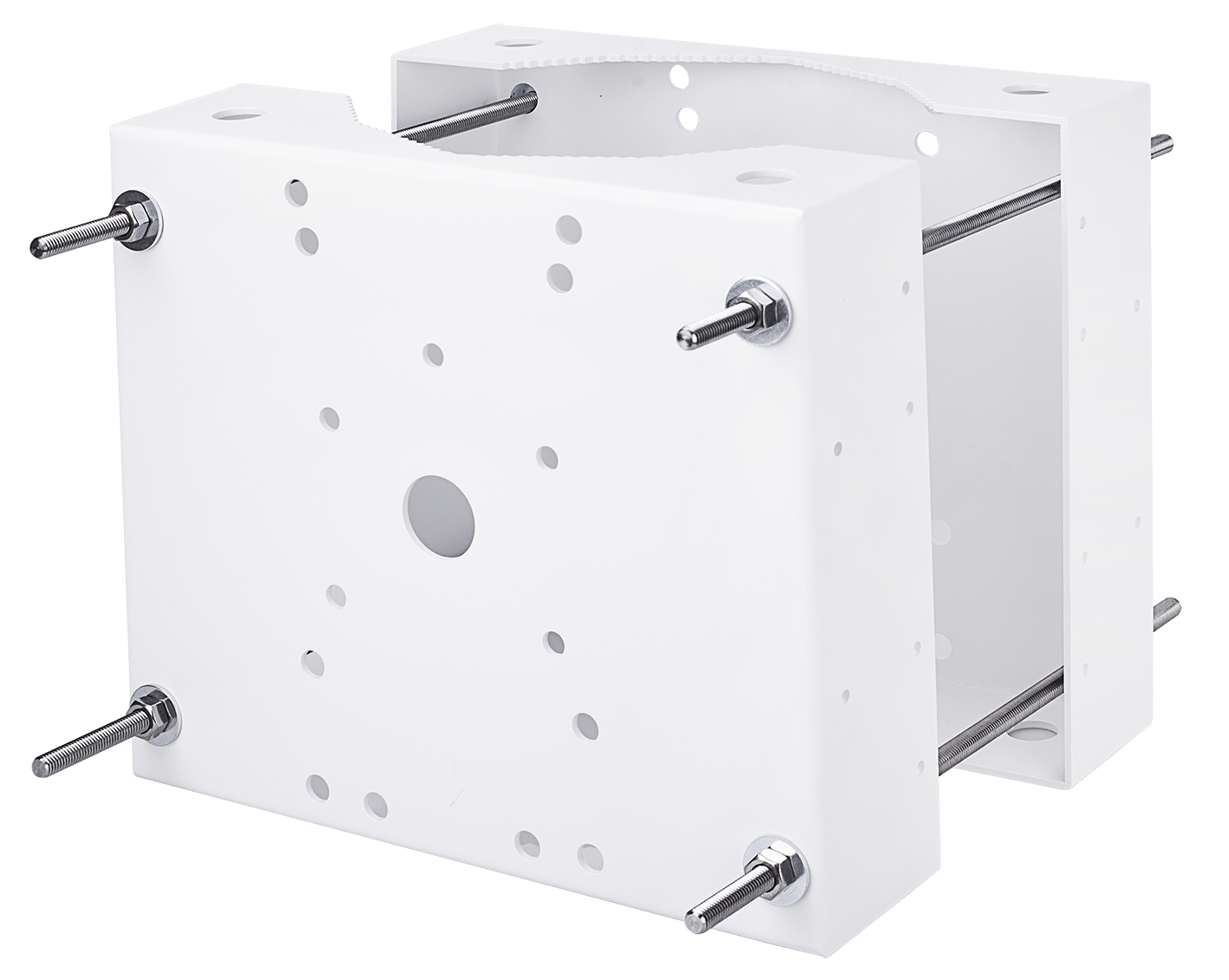

AM-315
Pole Mount Adapter
AM-314
Pole Mount Adapter

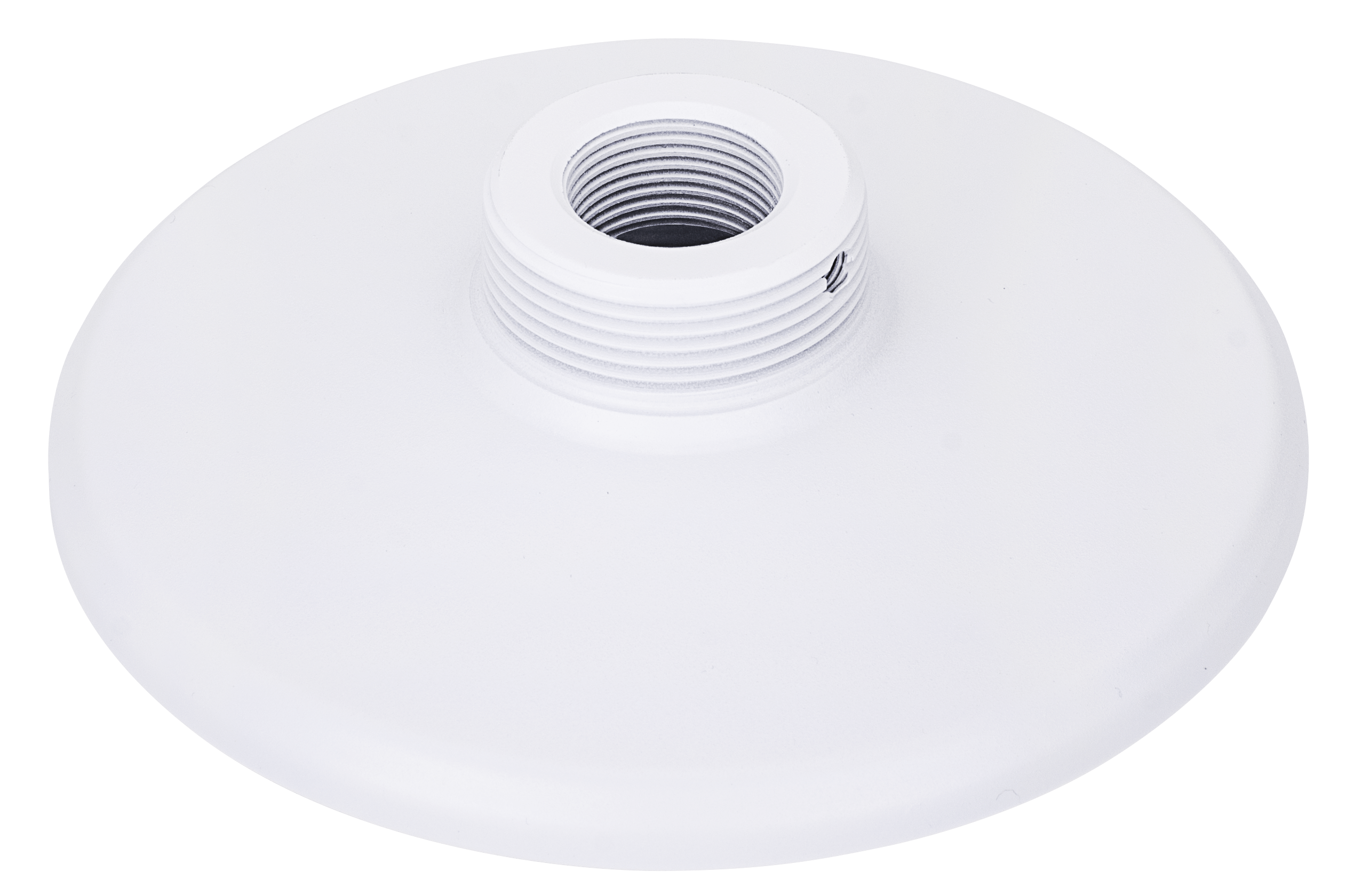

AM-528
Mounting Adapter (3/4" NPT Female Connector & 1-1/2"
NPT Male Connector)

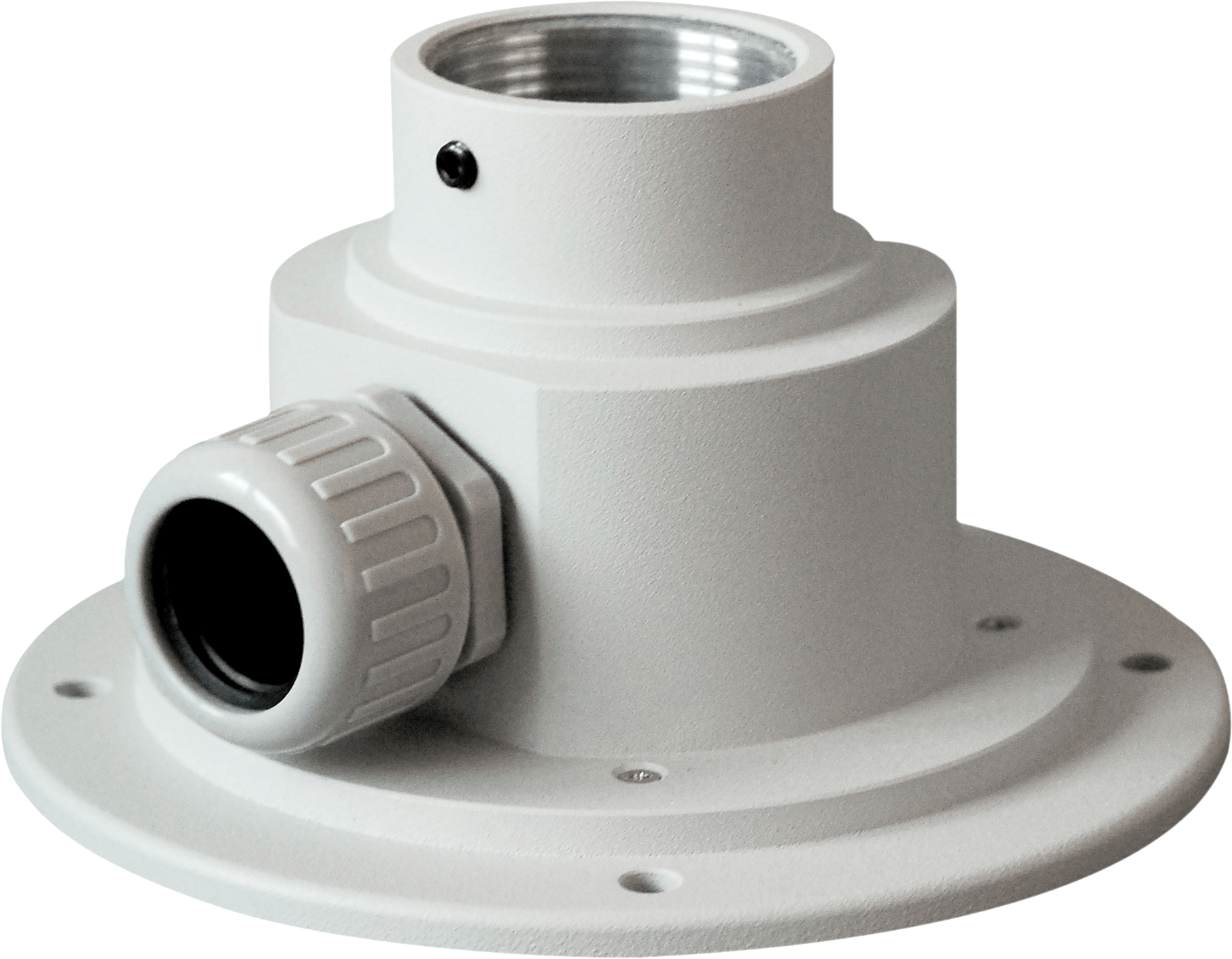

AM-114
Pendant Head (Outdoor)
