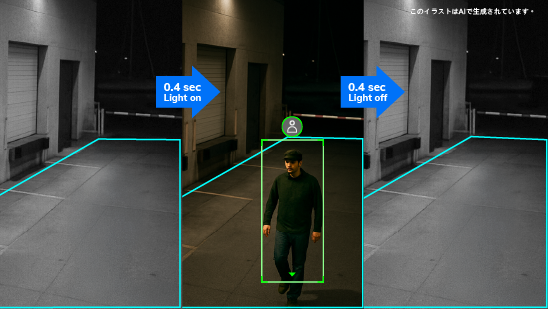

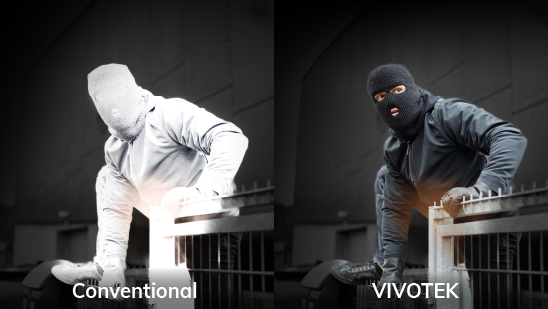

デュアルライトタレット型AIカメラシリーズは夜間、イベントを検知するまでは目立たない状態で監視モードを維持します。イベントを検知すると瞬時に明るい暖色灯を点灯し、侵入者を威嚇・抑止します。このモードは潜在的な脅威を防止するだけでなく、夜間のイベント中の映像を鮮明かつフルカラーで提供します。
異常な行動を検知すると、カメラが自動的に警告音を鳴らし、潜在的な侵入者や脅威を抑止します。
*本機能は VORTEX xPro ライセンス専用です。

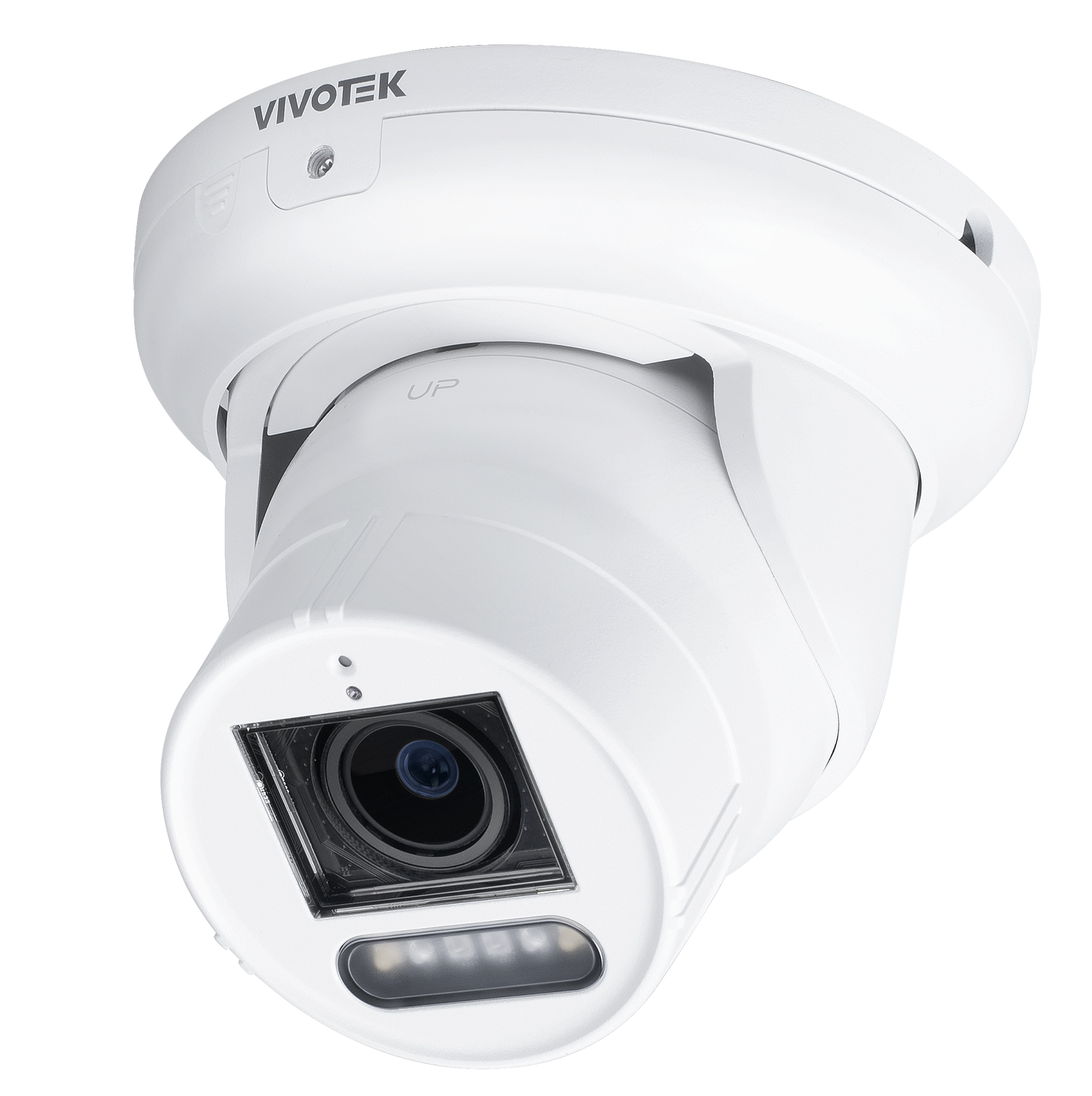

Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.8~12 mm
Aperture
F1.6 ~ F3.3
Iris
P-iris
Field of View
95.4° ~ 28.7° (Horizontal)
68.8° ~ 21.5° (Vertical)
129.6° ~ 35.9°(Diagonal)
Camera Movement
Pan: 350° Tilt: 70°
Rotate: ±175°
Shutter Speed
1/5 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in Warm Light & Infrared (Hybrid) illuminators, IR effective up to 40 meters & warm light effective up to 30 meters with Smart IR/ warm light
WDR Technology
WDR Pro
Minimum Illumination
0.04 lux @ F1.6 (Color)
0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way Audio (Full duplex)
(License required to enable speaker talk-down feature)
Interface
Built-in microphone
Built-in speaker
External microphone Input
External line output
Effective Range
5 meters
Power and Network
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 12.4W/ 9.6W (IR on/off)
Connectivity
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio line input
Audio line output
Digital input: 1
Digital output: 1
RTSP
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP,
RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-10°C ~ 50°C (14°F ~ 122°F)
Working Temperature:
-30°C ~ 50°C (-22°F ~ 122°F) (IR off)
-30°C ~ 45°C (-22°F ~ 113°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A); IC (ICES-003 Issue 7, Class A)
Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471); UKCA (BS EN IEC 62368-1)
Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Warranty
Up to 10 years (Depends on license type)
Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland
Mechanical
Weight
780 g
Dimensions
ø 137.9 x 116.9 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application

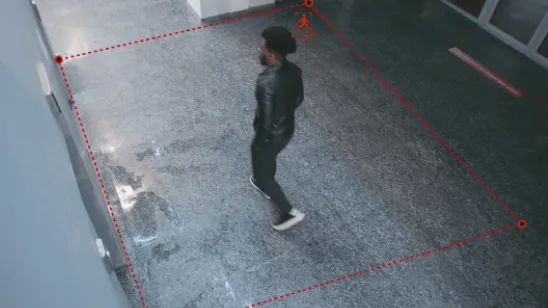

Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
AI Hub with xPro License
--
Application available with license
Personal protective equipment
