VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 5-year warranties and continuous license subscriptions for significant cost savings per camera.

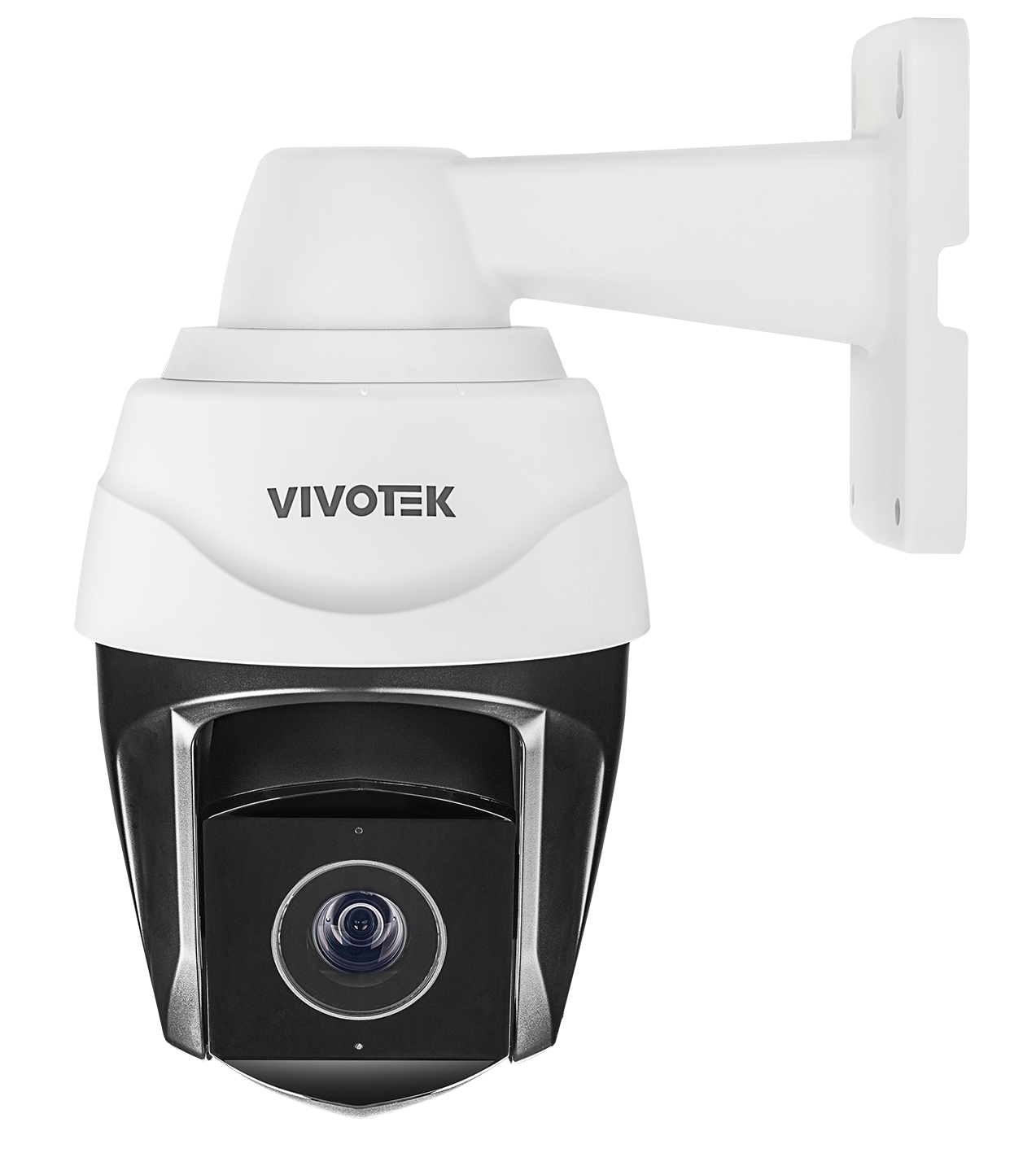

Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
30x Optical Zoom, Auto Focus
Focal Length
4.94~148.24mm (30x zoom)
Aperture
F1.3~4.6
Iris
DC-iris
Field of View
54.1° ~ 1.9° (Horizontal)
41.2° ~ 1.4° (Vertical)
65.7° ~2.4° (Diagonal)
Camera Movement
Pan: 360° endless @Speed 0.05° ~ 450°/sec
Tilt: -20° ~ +90° @Speed 0.05° ~ 450°/sec
Shutter Speed
1 sec. to 1/100,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators up to 200 meters with Smart IR, IR LED*8
WDR Technology
WDR Pro
Minimum Illumination
0.03 lux @ F1.3 (Color)
0.005 lux @ F1.3 (B/W)
0 lux with IR illumination on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way audio (Full duplex)
(xPro License required to enable speaker talk-down feature )
Interface
External line input
External line output
Effective Range
-
Power and Network
Power Input
AC 24V, DC48V, IEEE 802.3 bt Class 6 PoE
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE
Max: 51W/26W (IR on/off)
DC 48V
Max: 51W/26W (IR on/off)
AC 24V
Max: 51W/26W (IR on/off)
IR ON: 51W/45W Heater and fan on/off
IR OFF: 26/20W Heater and fan on/off
Connectivity
RJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio line input*
Audio line output*
DC 48V power input
AC 24V power input
Digital input*2*
Digital output*1*
RS-485*1*
* Requires AO-008 cable
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 6 clients
*Live viewing for 6 clients
*live viewing up to 4 clients and playback 2 clients)
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General
Operating Temperature
Starting Temperature:
-40°C ~ 55°C (-40°F ~ 131°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC:
CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
Safety:
UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment:
IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
Warranty
Up to 5 years (Depends on license type)
Included Accessories
Wall mount bracket, Screw pack, Screws and anchors, T10 and T25 L-wrench, Waterproof round cap, Quick installation guide, Terminal blocks (for DI/DO audio, AC/DC/GND wires, RS485), Ground wire.
Mechanical
Weight
7.1 kg
Dimensions
ø 256 x 336 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
-
Application
-
AI Hub with xPro License
-
Application available with license
-
