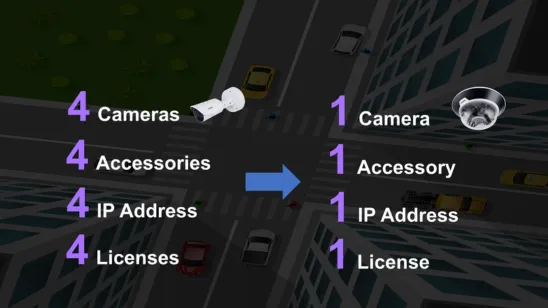

1回の設置で導入の複雑さを軽減しながら完全なカバレッジを提供します。さらに、カメラ台数も減らせるため、ライセンスとメンテナンスコストの削減にもつながります。
多方向パノラマAIカメラは、1/2.8インチプログレッシブCMOSセンサー、30mのIR距離、WDR技術を搭載し、低照度および高コントラスト条件下でもノイズを最小限に抑えた鮮明な映像を実現します。24時間365日のパノラマ監視に最適です。

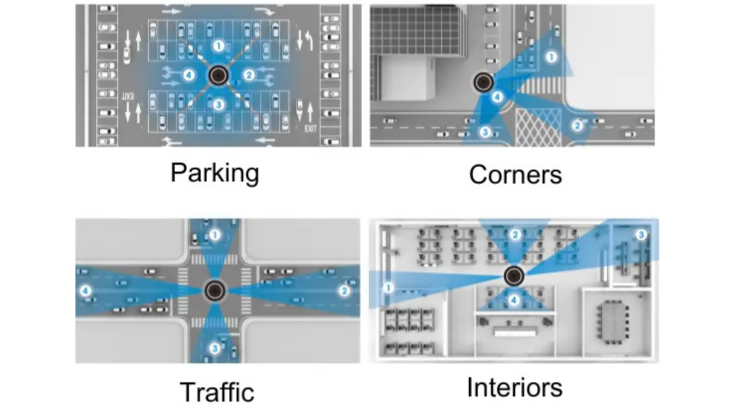

多方向パノラマAIカメラは、その画角の広さによって包括的な動作範囲を実現し、結果として死角が排除され、複数のカメラを使用する必要がなくなります。
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Resolution
Each lens:
SD: 1280 x 960
HD: 2560 x 1920
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 3.2~7.7 mm
Aperture
F1.85~F2.4
Iris
Fixed iris
Field of View
94° ~ 43° (Horizontal)
67° ~ 33° (Vertical)
129° ~ 54° (Diagonal)
Camera Movement
Each lens:
Tilt: 0° ~ 105° Rotate:±90°
Shutter Speed
1/30 sec. to 1/32,000 sec.
Day/Night
Yes
IR Cut Filter
Yes
IR Range
Built-in IR illuminators up to 30 meters with Smart IR, IR LED*8
WDR Technology
WDR Pro
Minimum Illumination
0.07 lux @F1.85 (Color)
0.005 lux @F1.85 (B/W)
0 lux with IR illuminaton on
Onboard Storage
MicroSD/SDHC/SDXC card slot
(Built-in 1TB industrial SDCard)
Standard Video Settings
Frame Rate
15FPS
Video Streaming Settings
HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings
Audio
Two-way audio (Full duplex)*
* Requires AO-006 cable
Interface
Built-in microphone
External microphone Input*
External line output*
* Requires AO-006 cable
Effective Range
5 meters
Power and Network
Power Input
AC 24V*, IEEE 802.3 at PoE Class 4
* Requires AO-006 cable.
Power Consumption
Max 25.5W
Connectivity
RJ-45 cable connector for 10/100/1000 Mbps Network/PoE connectionn
Audio line input*
Audio line output*
AC 24V power input*
Digital input*
Digital ouput (DO+: 12V, 10mA; DO-: 30V, Open Drain, 1A)*
* Requires AO-006 cable.
Protocols
WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users
Up to 20 clients Live viewing for 20 clients *Live viewing up to 16 clients and playback 4 clients
Interface
Built-in microphone
External microphone Input*
External line output*
* Requires AO-006 cable
Security
Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
General
Operating Temperature
Starting Temperature:
-30°C ~ 55°C (-22°F ~ 131°F)
Working Temperature:
-40°C ~ 55°C (-40°F ~ 131°F) (IR off)
-40C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity
98% RH (non-condensing)
Certifications
EMC:
CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
Safety:
UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
Environment:
NEMA (NEMA 250 Type 4X) , IK10 (IEC 60529), IP66 (IEC 60529)
IA:
BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Warranty
Up to 5 years (Depends on license type)
Included Accessories
Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack
Mechanical
Weight
2.7 kg
Dimensions
ø 275 x 118 mm
Body
Metal
AI Analytics
Audio Detection
Yes
Tampering Detection
Yes
Application
Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection
Application with xPro License
AI Hub (Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight), Facial recognition
Application Available with Advanced AI License
-
